USB-Smart card-LED cable assembly removal
1. Remove the operator panel assembly. See “Operator panel assembly removal” on page 4-135.
2. Remove the operator cover assembly. See “Operator panel cover assembly removal” on page 4-140.
3. Release the Smart card cable and the USB cable from the operator panel top cover.

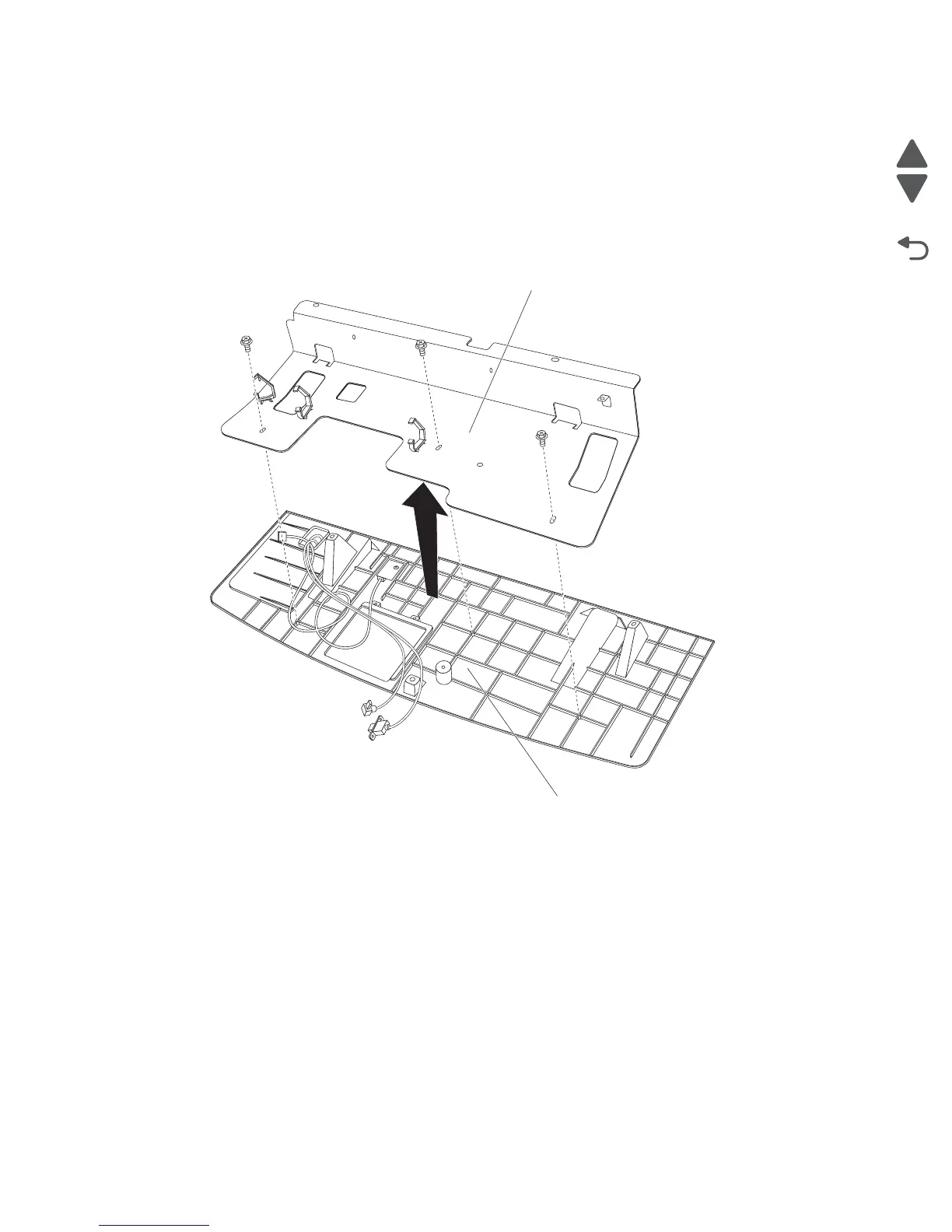

4. Remove the three screws securing the rear frame (A) to the operator panel bottom cover (B).
5. Lift the rear frame (A), and remove.
A
B
