4-208 MFP Service Manual
7500-432, -632, and -832
Sensor (sheet through) removal
1. Open the ADF left cover assembly.
2. Lift the document tray assembly.
3. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-173.

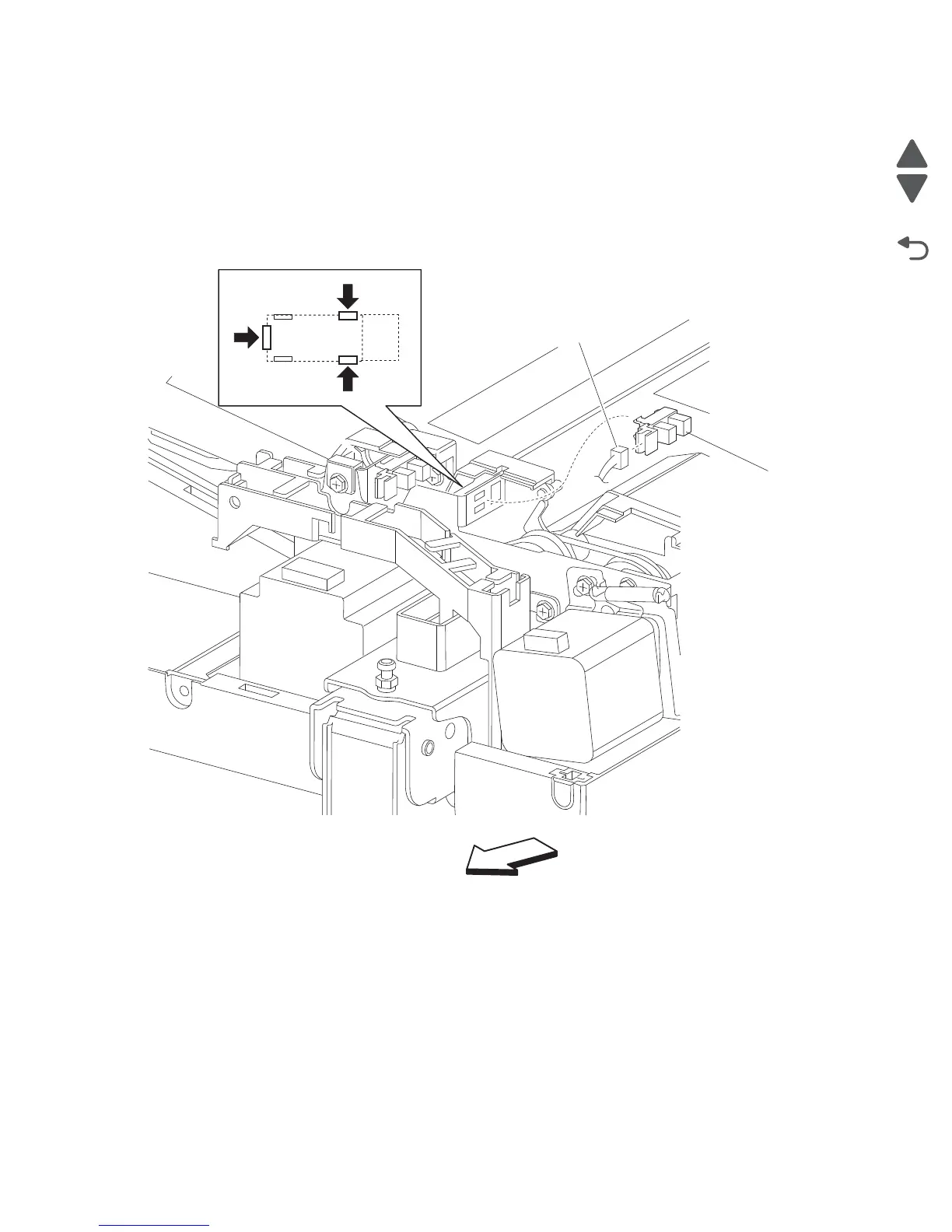

4. Disconnect the connector from the sensor (sheet through) (A).
5. Release the hooks securing the sensor (sheet through) (A).
6. Remove the sensor (sheet through) (A).
