2000-sheet dual input (TTM)—foot cover removal
1. Remove tray 3 assembly. See “2000-sheet dual input (TTM)—tray 3 assembly removal” on
page 4-224.
2. Remove tray 4 assembly. See “2000-sheet dual input (TTM)—tray 4 assembly removal” on
page 4-223.
3. Remove the right cover. See “2000-sheet dual input (TTM)—right cover removal” on page 4-217.

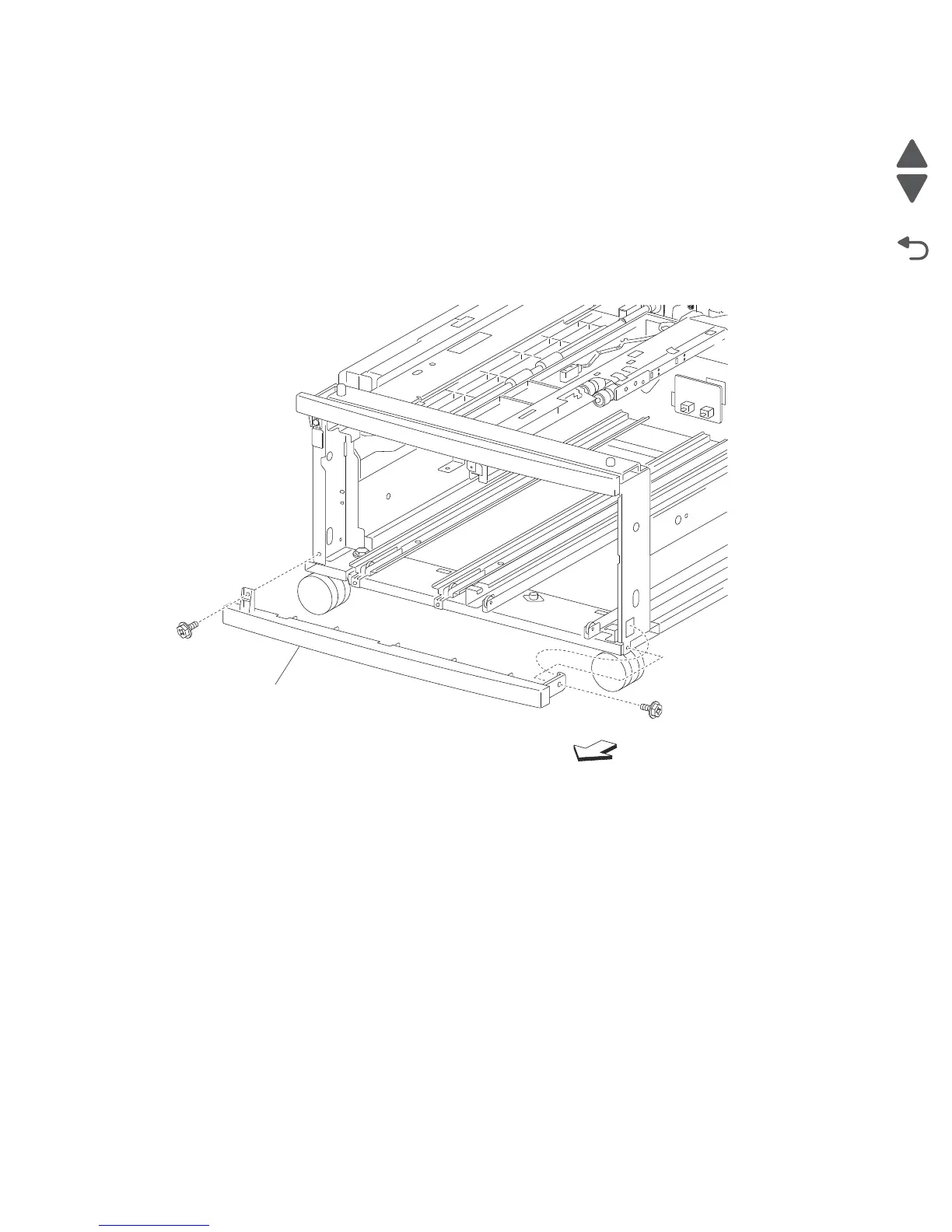

4. Remove two screws securing the foot cover (A).
5. Remove the foot cover (A).
A
Front
