Repair information 4-97
7500-432, -632, and -832
Go Back
Previous
Next
Toner add motor assembly removal
1. Remove the printer front left cover. See “Printer front left cover removal” on page 4-3.
2. Remove the top cover assembly. See “Top cover assembly removal” on page 4-5.
3. Remove the PC cartridge.
4. Remove the toner cartridge.
5. Remove the printer front door assembly. See “Printer front door assembly removal” on page 4-6.
6. Remove the front inner cover. See “Front inner cover removal” on page 4-8.
7. Remove the toner cartridge guide assembly. See “Toner cartridge guide assembly removal” on
page 4-95.

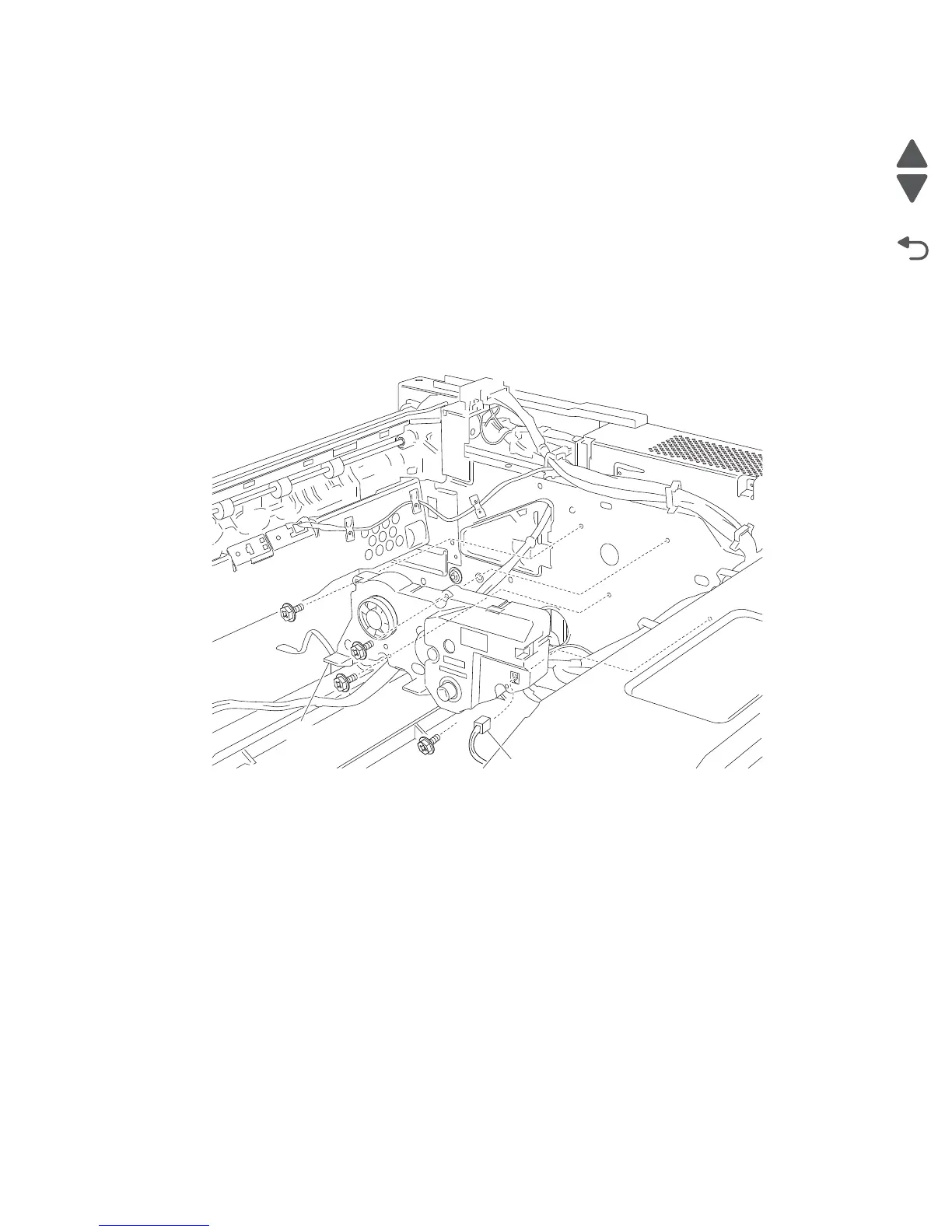

8. Disconnect the connector from the toner add motor assembly (A).
9. Remove the four screws securing the toner add motor assembly (A).
10. Remove the toner add motor assembly (A).
Note: Before reinstalling, ensure the shaft on the toner cartridge guide assembly is inserted into the toner add
motor assembly (A).
A
Connector
