MPF/transport drive motor assembly removal
1. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11.
2. Remove the rear lower cover. See “Rear lower cover removal” on page 4-12.
3. Open the printer left door assembly.
4. Remove the e-clip with needle nose pliers.
Note: This e-clip is located inside the machine behind the printer left door.

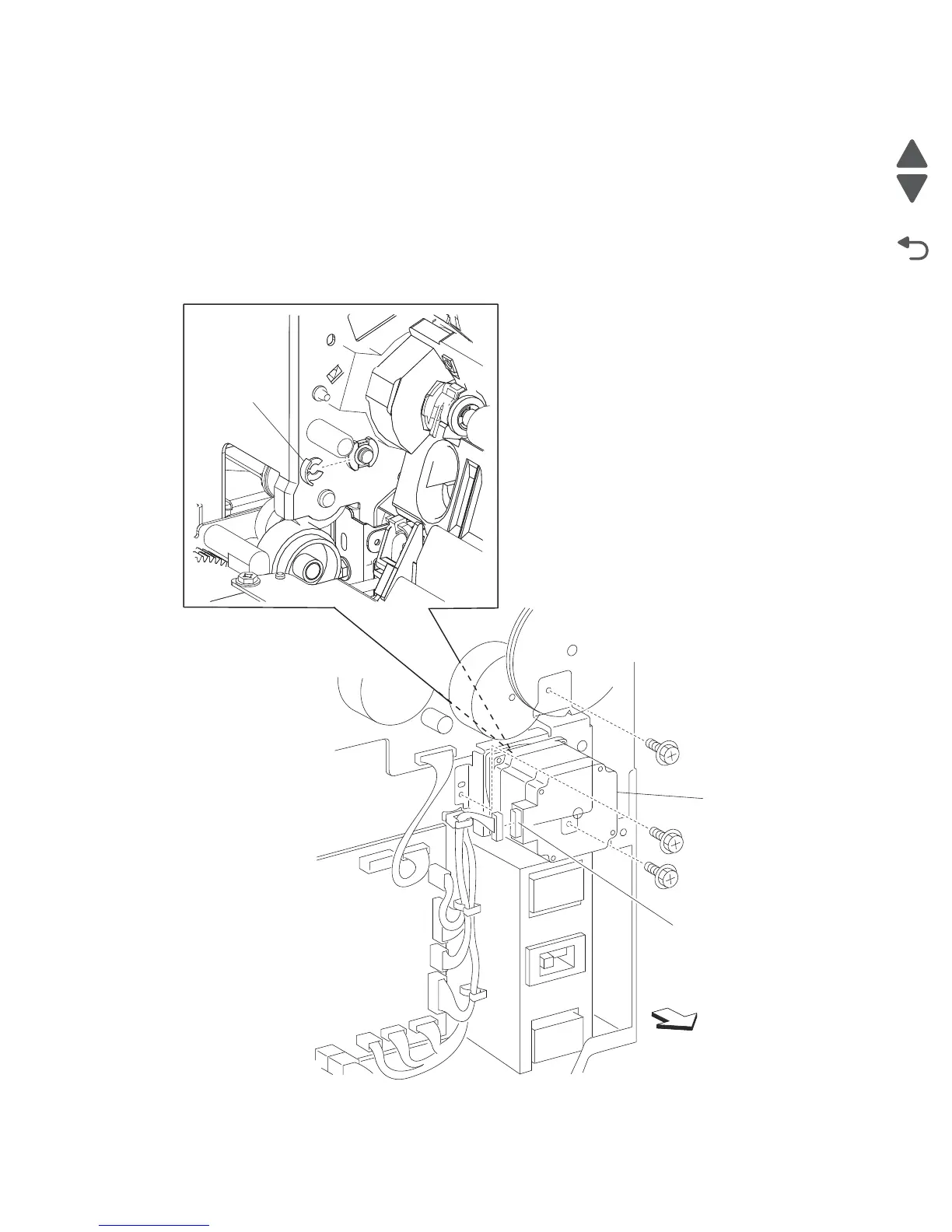

5. Release the hook and disconnect the connector from the MPF/transport drive motor assembly (A).
6. Remove the three screws securing the MPF/transport drive motor assembly (A) to the machine.
7. Remove the MPF/transport drive motor assembly (A).
A
Connector
Rear
E-clip
Front view
