2000-sheet dual input (TTM)—sensor (media out) removal
1. Remove the media feed unit assembly. See “2000-sheet dual input (TTM)—media feed unit assembly
removal (tray 3)” on page 4-250 or “2000-sheet dual input (TTM)—media feed unit assembly
removal (tray 4)” on page 4-246.
2. Remove the media out actuator. See “2000-sheet dual input (TTM)—media out actuator removal” on
page 4-260.

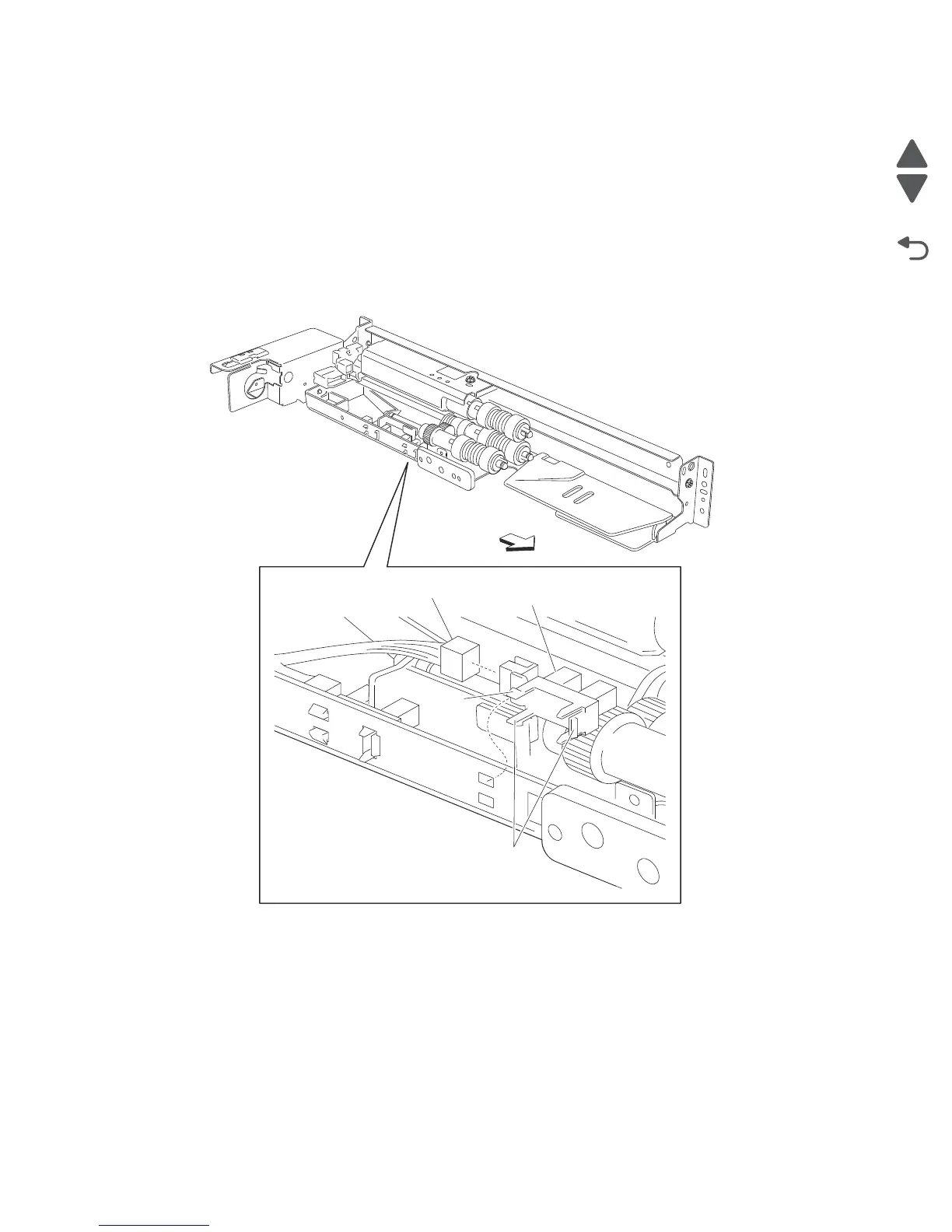

3. Disconnect the connector from the sensor (media out) (A).
4. Release the hooks securing the sensor (media out) (A) to the media feed unit assembly.
5. Remove the sensor (media out) (A).
Front
Harness
A
Hooks
Lower view
Hook
