Lexmark X862de - Exit 2 Switch (Exit 2 Left Door Interlock) Removal

Repair information 4-331
7500-432, -632, and -832
Go Back
Previous
Next
Exit 2 switch (exit 2 left door interlock) removal
1. Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-322.
2. Open the exit 2 unit assembly.
3. Remove the exit 2 left cover. See “Exit 2 left cover removal” on page 4-325.
4. Remove the exit 2 right cover. See “Exit 2 right cover removal” on page 4-327.

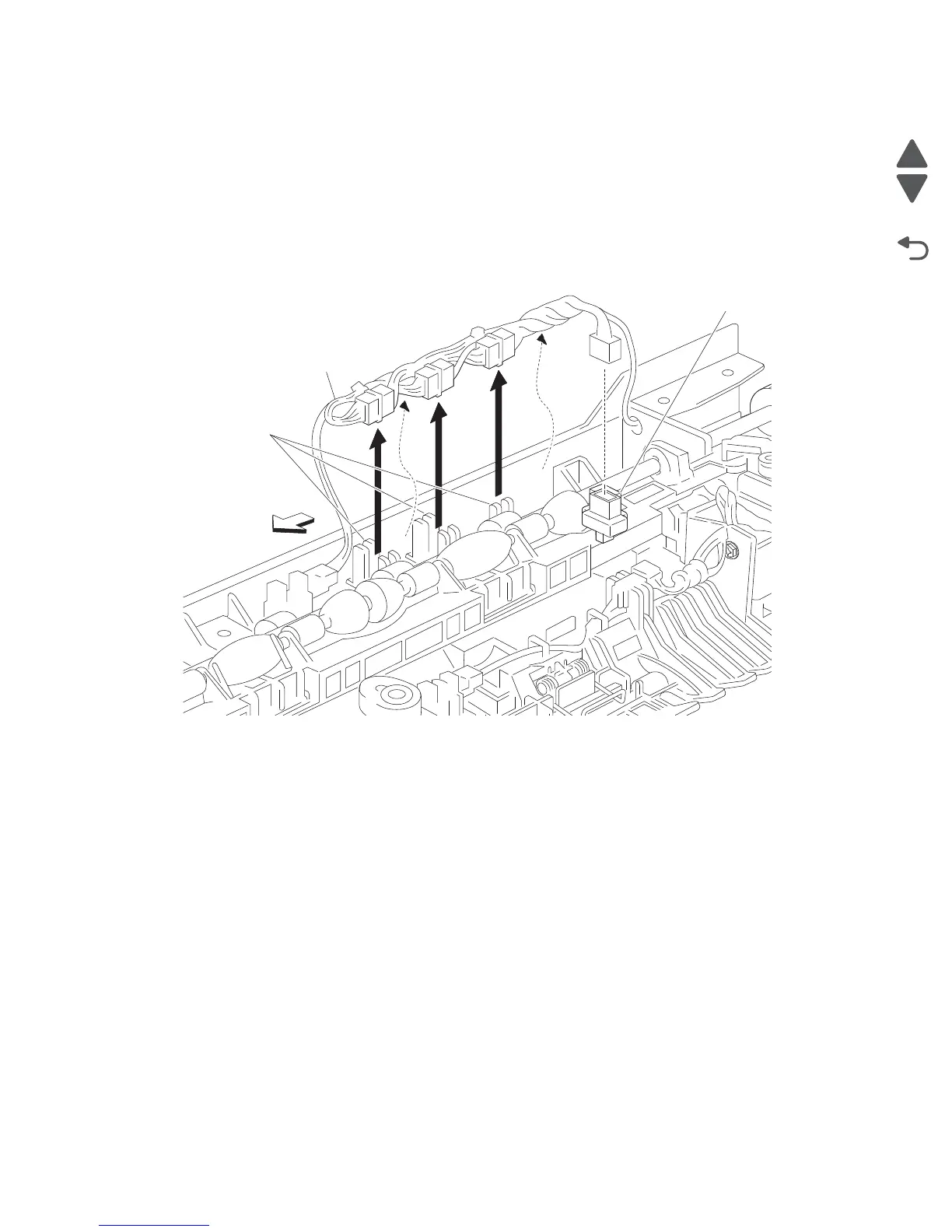

5. Release the hooks securing the switch (exit 2 left door interlock) (A) to the exit 2 unit assembly.
6. Remove the switch (exit 2 door interlock) (A).
Harness
Guides
Front
A
