4-110 MFP Service Manual
7500-432, -632, and -832
Sensor (exit 1 bin full) removal
1. Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13.
2. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11.
3. Remove the rear upper cover. See “Rear upper cover removal” on page 4-15.
4. Open the printer left door assembly.
5. Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-322.
6. Open the printer front door assembly.
7. Remove the printer front left cover. See “Printer front left cover removal” on page 4-3.
8. Remove the exit 1 media shift assembly. See “Exit 1 media shift gear removal” on page 4-111.

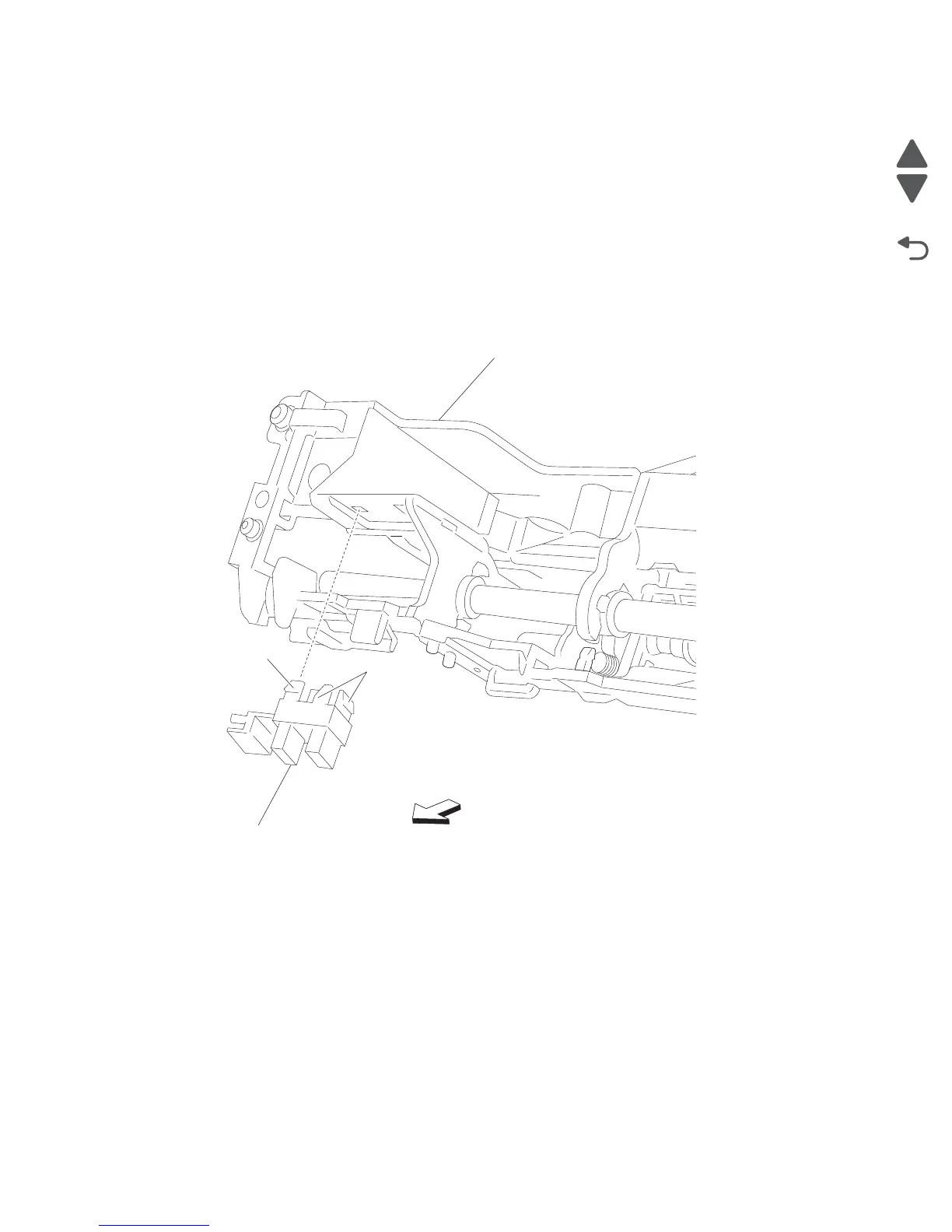

9. Release the hooks securing the sensor (exit 1 bin full) (A) to the exit 1 media shift assembly (B).
10. Remove the sensor (exit 1 bin full) (A).
