Repair information 4-71
7500-432, -632, and -832

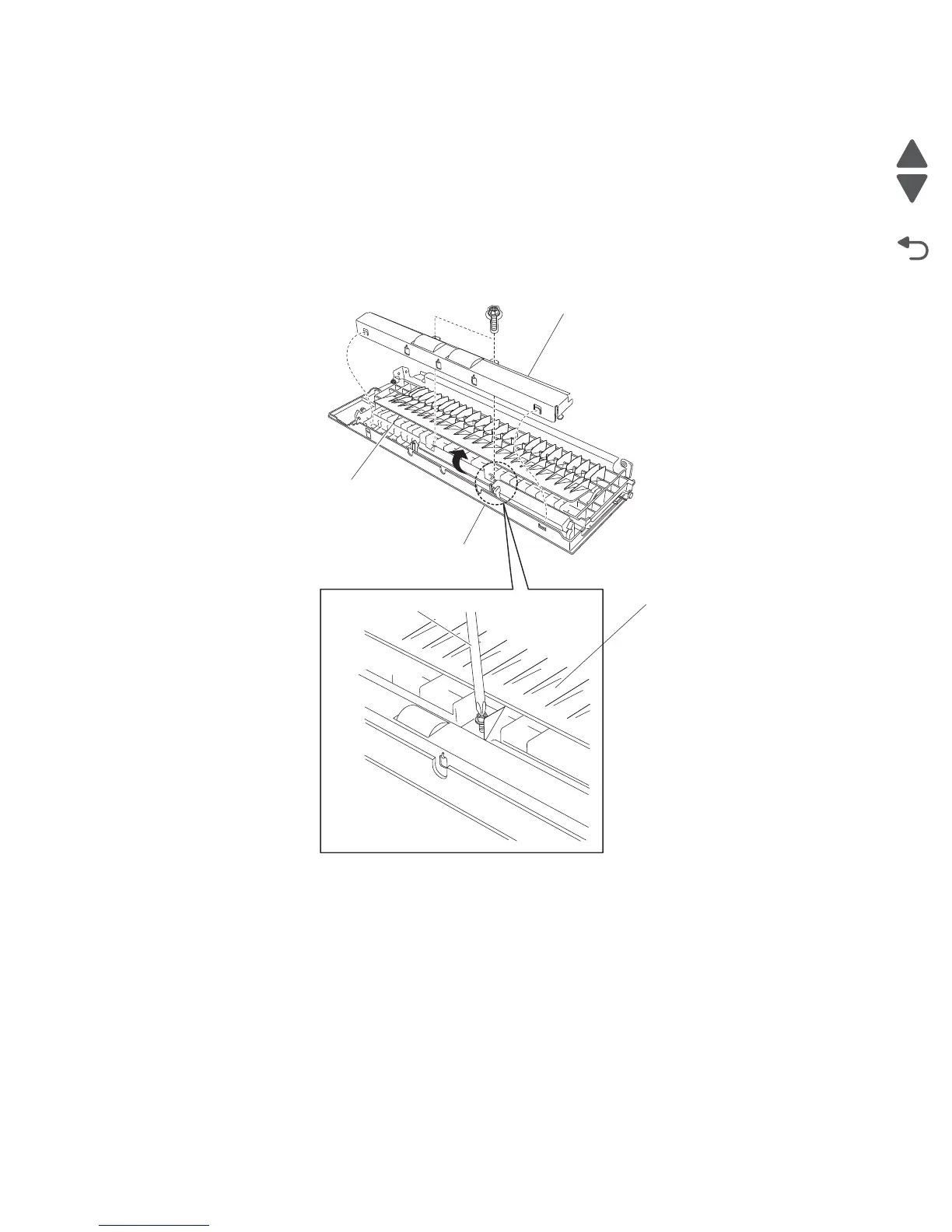

Printer left lower pinch roll assembly removal
1. Open the printer left lower door assembly.
2. Remove the two screws securing the left lower pinch roll assembly (A) to the printer left lower door
assembly (B).
Note: The media guide (C) can be slightly lifted to gain better access to the attaching screws.
3. Release two hooks securing the left lower pinch roll assembly (A) to the printer left lower door
assembly (B).
4. Remove the left lower pinch roll assembly (A).
