Switch (printer left door interlock) removal
1. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11.
2. Open the printer left door assembly.

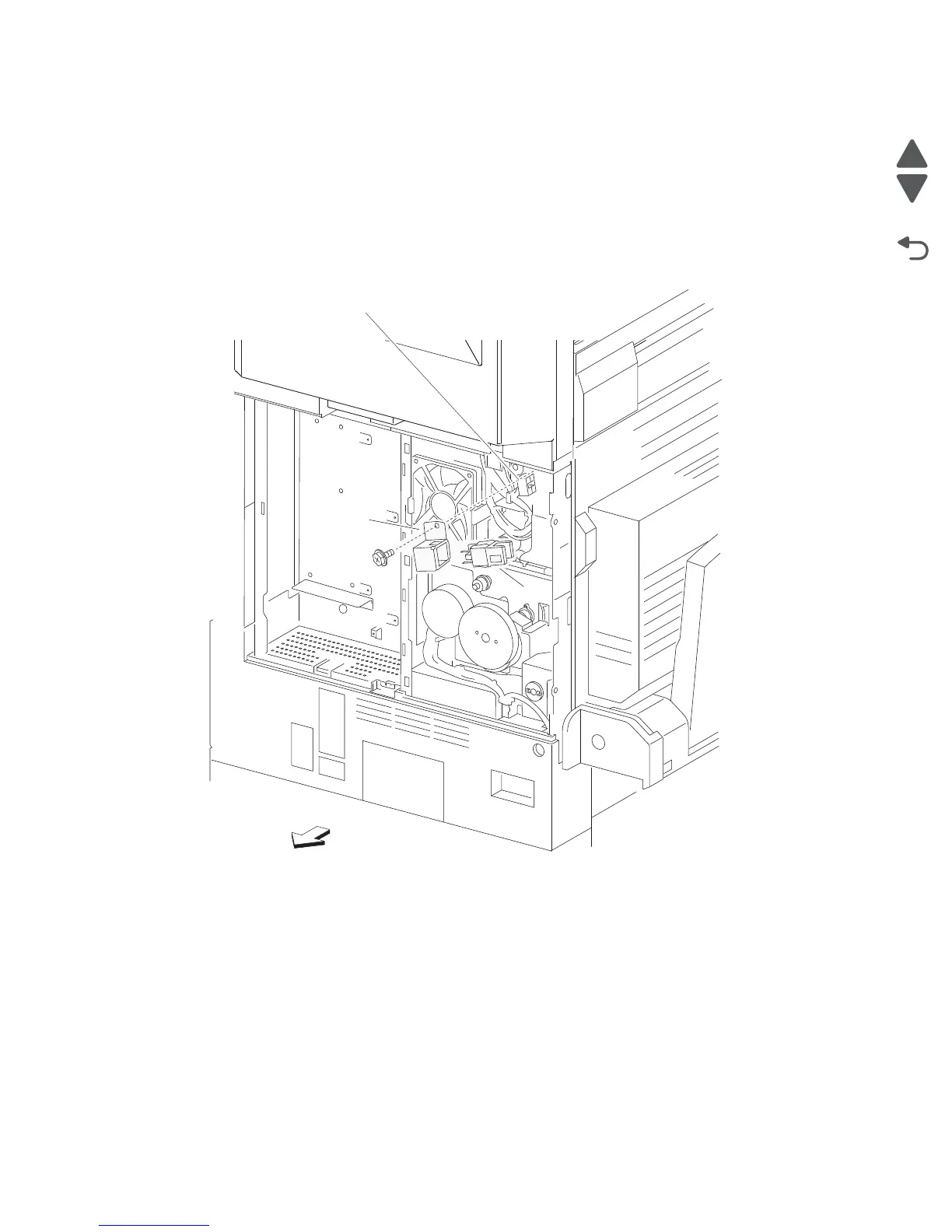

3. Remove the one screw securing the bracket (A) to the printer.
4. Remove the bracket (A).
5. Disconnect the connector from the switch (printer left door interlock) (B).
6. Release the hooks securing the switch (printer left door interlock) (B) to the bracket (A).
7. Remove the switch (printer left door interlock) (B).
A
Rear
B
Connector
