Oki B6500

3 - 14
Chapter 3 Removal and Replacement Procedures (RRPs)
7) Remove the 2 screws (gold tapping, 8mm) from both right and left side, as well as the 6 screws
(gold tapping, 8mm) on the back, that secure the HOUSING TOP 150 (PL 2.1) to the HOUSING
BASE 150 (PL 2.1) (Figure 2).
8) Release the 4 hooks of the HOUSING TOP 150, and remove the HOUSING TOP 150 and HOUS-
ING EXTENSION 150 (PL 2.1) from the HOUSING BASE 150 (Figure 2).
9) Remove the 4 screws (gold tapping, 6mm) securing the COVER EXTENSION (PL 2.1) to the
HOUSING EXTENSION 150.
10) Remove the COVER EXTENSION from the HOUSING EXTENSION 150.

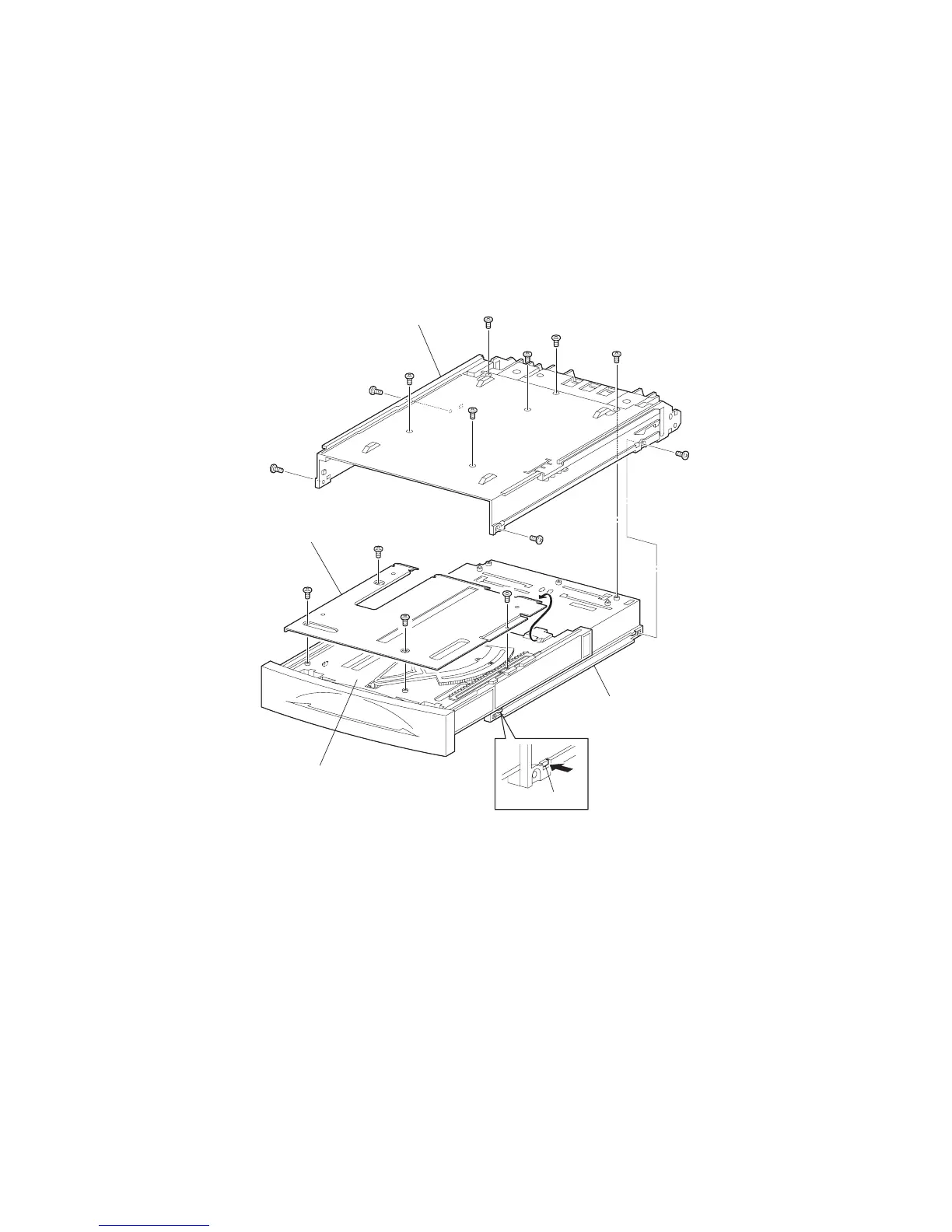

Figure 2. 150 Paper Cassette Base
11) Lift the front of the RACK SIZE (PL 2.1) a little, and turn it in the direction of the arrow to remove it
from the HOUSING EXTENSION 150 (Figure 3).
HOUSING TOP 150
(PL2.1.16)
HOUSING EXTENSION 150
(PL2.1.34)
HOUSING BASE 150
(PL2.1.36)
COVER EXTENSION
(PL2.1.30)
JG3008AA
HOOK
