Chapter 3 Removal and Replacement Procedures (RRPs)
7) Release the hook of the GEAR PB R (PL 3.1), and remove the GEAR PB R from the SHAFT PB
(PL 3.1) (Figure 2).
It is hard to remove GEAR PB R. When removing it, be careful not to break it (Figure 2).
8) Disengage the GEAR PB L from the PLATE GEAR LOCK 550 while bending the HOUSING BASE
550 in the direction of the arrows. Remove the PLATE ASSEMBLY BTM together with the SHAFT
PB, GEAR PB L, GEAR BTM DMP ONEWAY, and GEAR BTM LOCK ONEWAY from the HOUS-
ING TOP 550.
9) Pull out the SHAFT PB from the PLATE ASSEMBLY BTM, and remove the GEAR PB L, GEAR
BTM DMP ONEWAY and GEAR BTM LOCK ONEWAY.

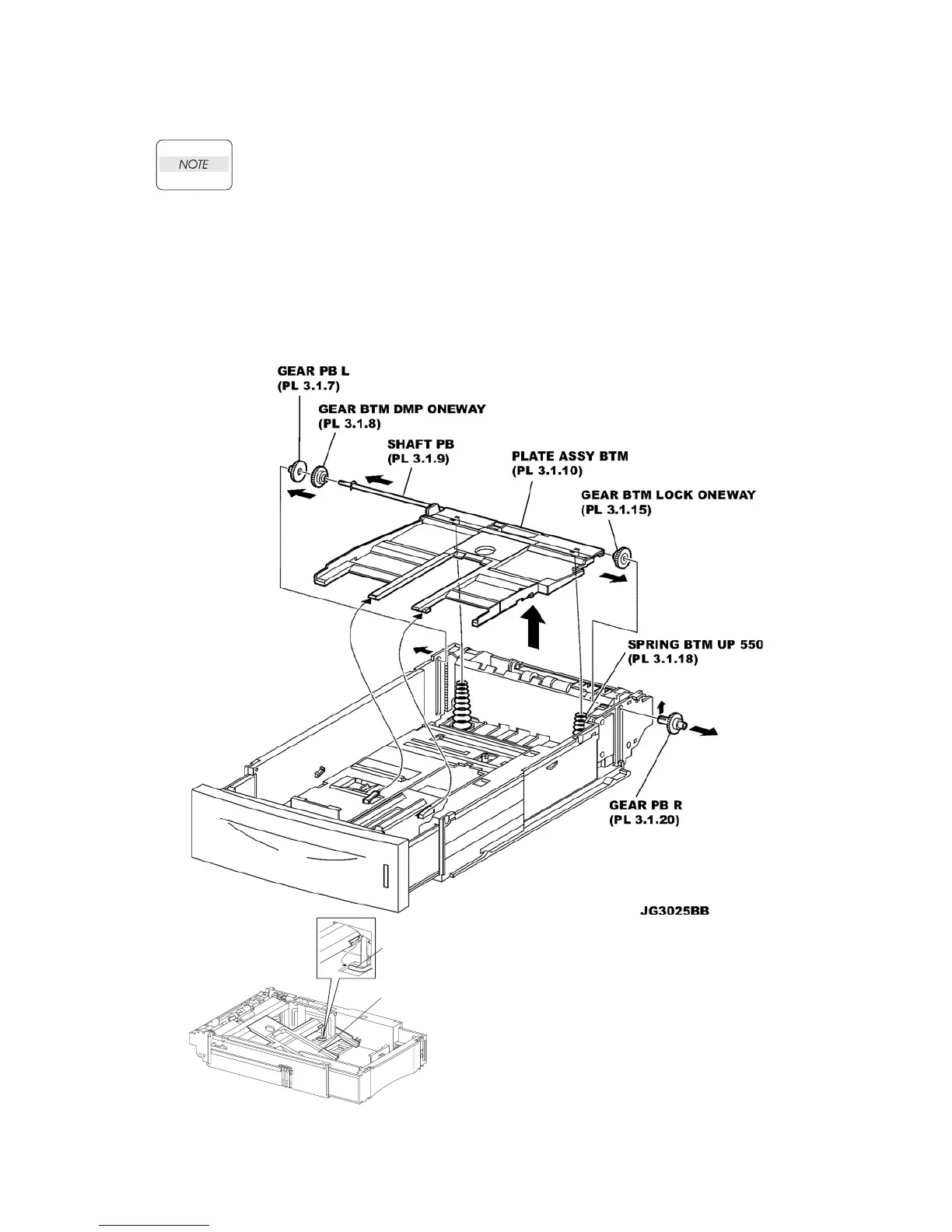

Figure 2 Tray Plate Assembly
GUIDE INDICATOR 1
PLATE ASSY BTM
(PL4.1.10/PL20.3.10)
JG3190AA
(PL 3.1.10)
NOTE 2
NOTE 1
To Next Page
