Chapter 3 Removal and Replacement Procedures (RRPs)
Replacement
1) Install the MOTOR DUPLEX to the BRACKET MOTOR using the 2 screws (gold, 6mm).
When installing the MOTOR DUPLEX, be careful in the installing direction.
2) Install the BRACKET MOTOR to the COVER HSG DUP (PL 10.1) using the 3 screws (gold
tapping, 8mm).
When installing the BRACKET MOTOR, be careful not to lose the gears.
3) Install the SPRING LATCH (PL 10.1) between the LEVER LATCH LEFT (PL 10.1) and
BRACKET MOTOR.
4) Install the HARNESS ASSY DUP EARTH (PL 10.1) using the screw (silver, 6mm).
5) Install the PWBA DUPLEX (PL 10.1). (RRP10.5)

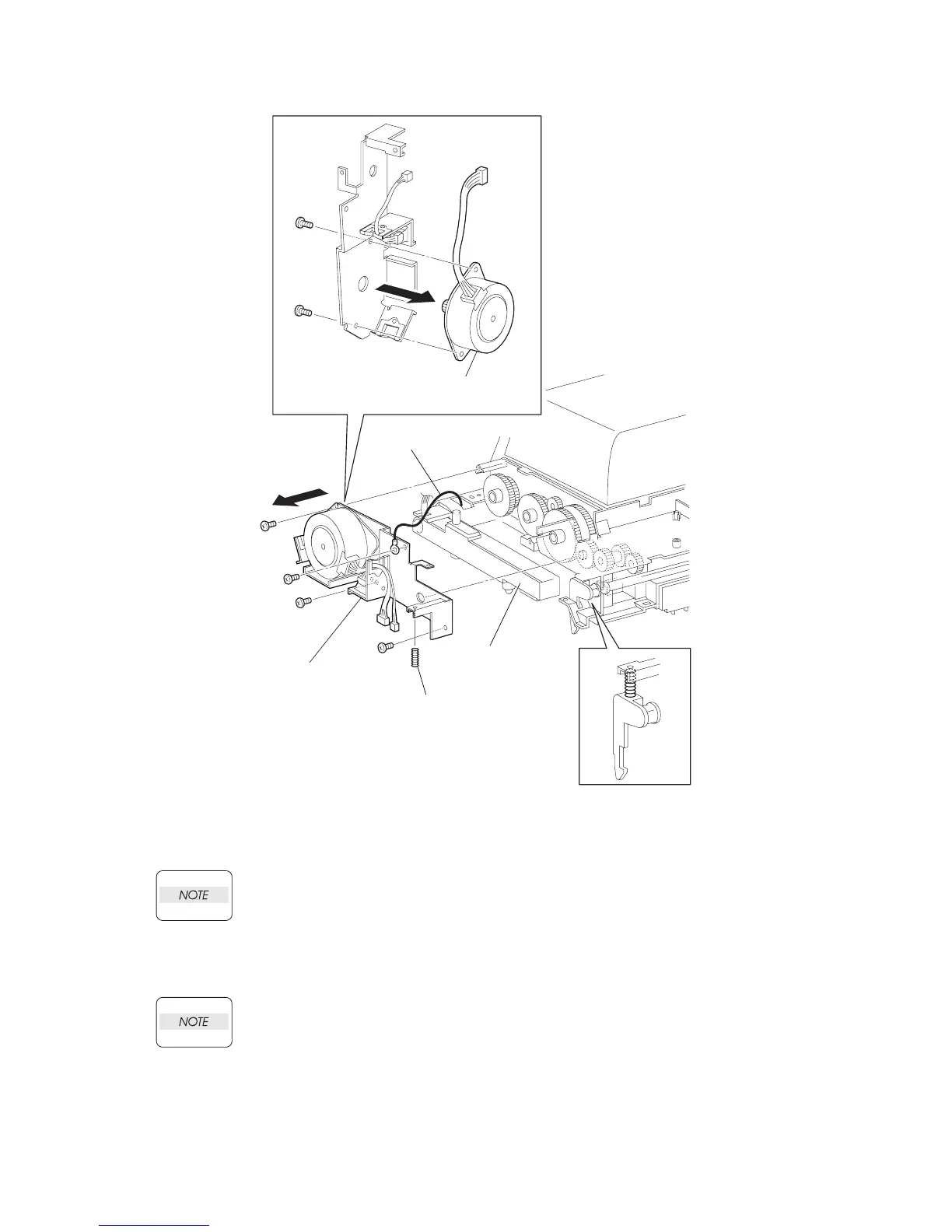

J23616AA
MOTOR DUPLEX
(PL21.1.29)
BRACKET MOTOR
(PL21.1.26)
COVER HSG DUP
(PL21.1.18)
SPRING LATCH
(PL21.1.15)
HARNESS ASSY DUP EARTH
(PL21.1.28)
