Chapter 3 Removal and Replacement Procedures (RRPs)
Replacement
1) Install the COVER OCT to the Option OCT.
2) Secure the COVER OCT to the Option OCT using the 2 screws (gold tapping, 8mm) at the bot-
tom.
JG3823AB

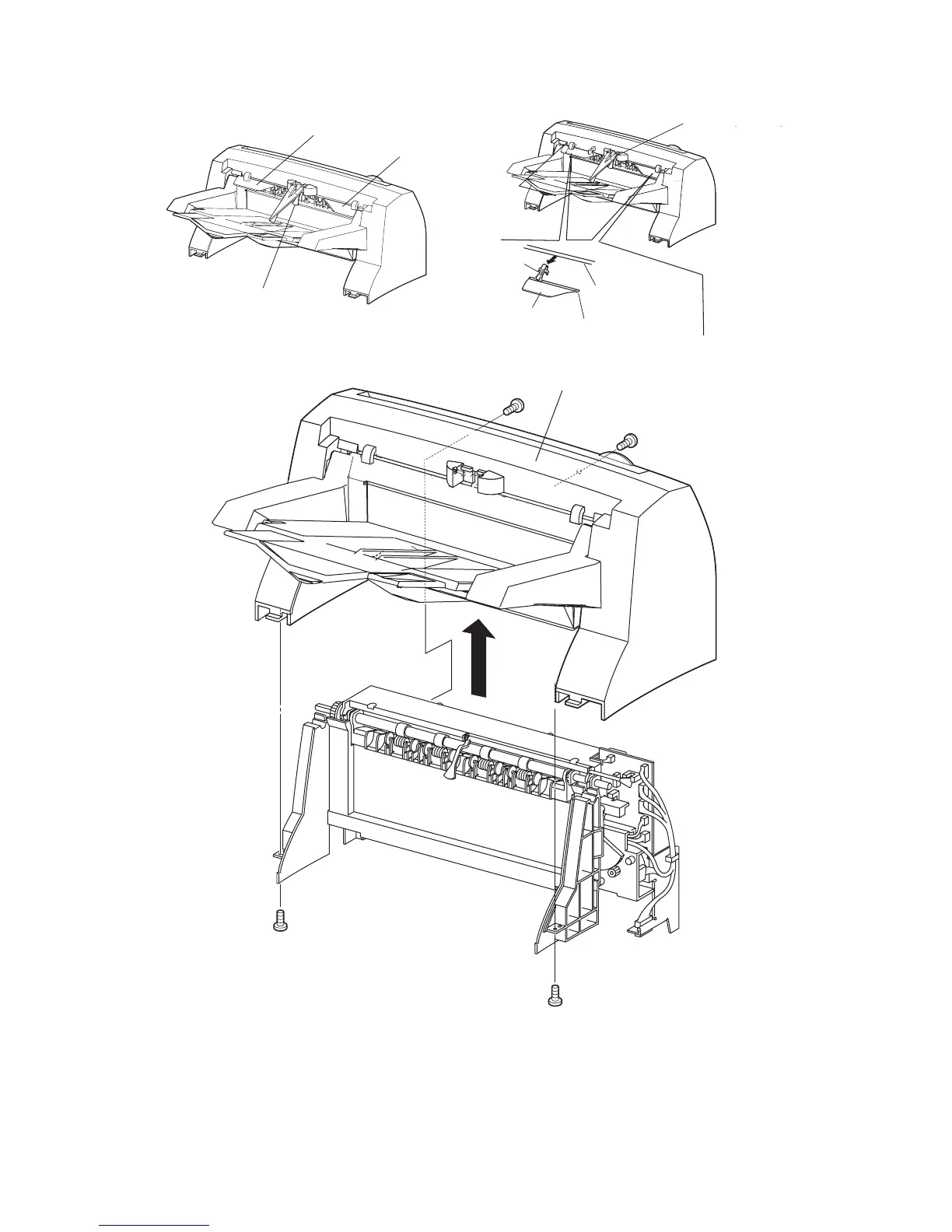

ACTUATOR FULL STACK
(PL23.1.15)
FLAPPER L
(PL23.1.49)
FLAPPER R
(PL23.1.50)
JG3821AA
LINK
(PL23.1.47)
FLAPPER L
(PL23.1.49) 
HINGE
SHAFT FULL STACK
(PL23.1.48)
WEIGHT (PL23.1.2)
COVER OCT
(PL23.1.1)
JG3804AA
