Chapter 3 Removal and Replacement Procedures (RRPs)
Replacement

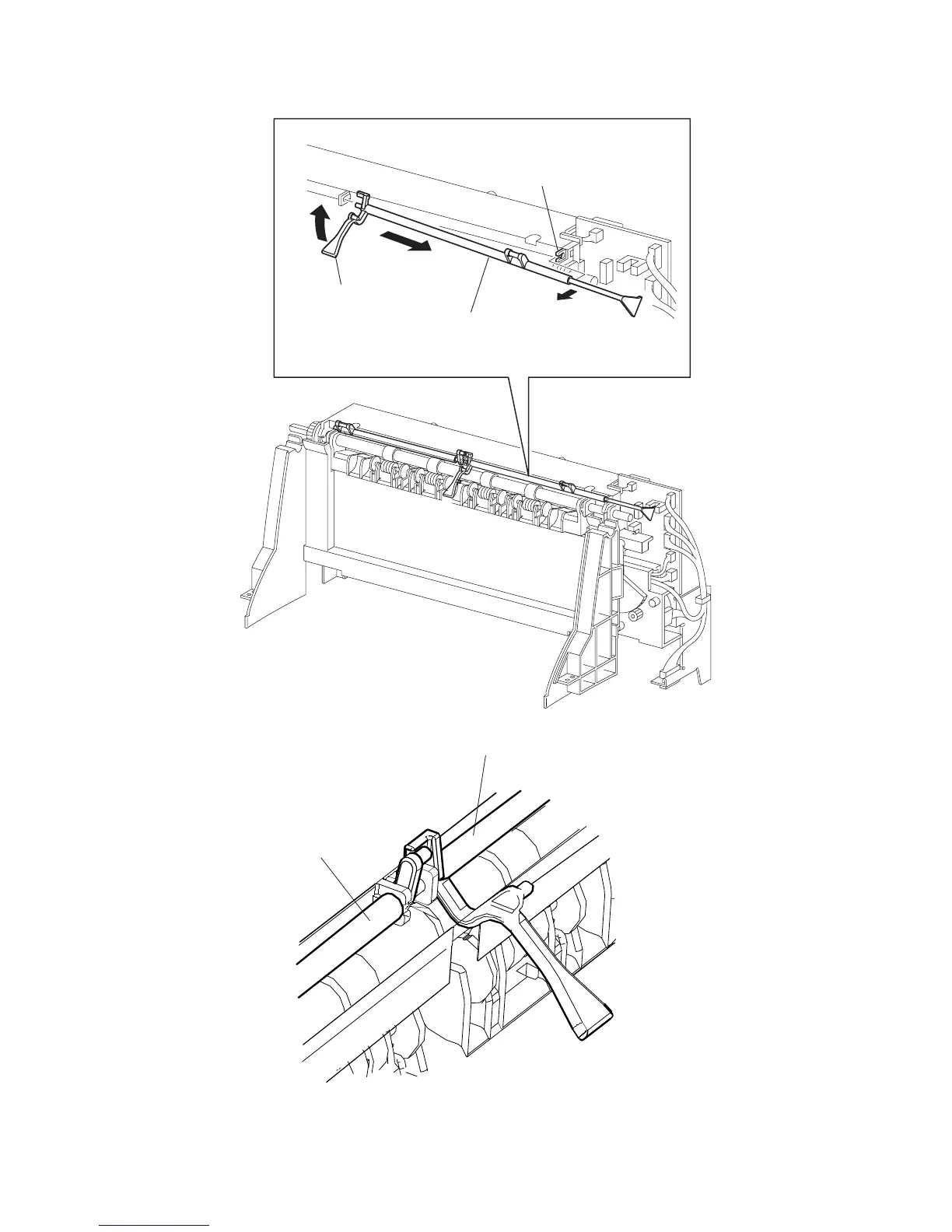

1) Lift up the ACTUATOR FULL STACK in the direction of the arrow (1), and insert it to the hook.
Move the ACTUATOR FULL STACK in the opposite direction of the arrow (2) to install.
HOOK
ACTUATOR FULL STACK
(PL23.1.15)
FLAP
(1)
(2)
JG3807AB
ACTUATOR FULL STACK
SHAFT FULL STACK
JG3822AA
