Oki B6500

3 - 207
Chapter 3 Removal and Replacement Procedures (RRPs)
Replacement

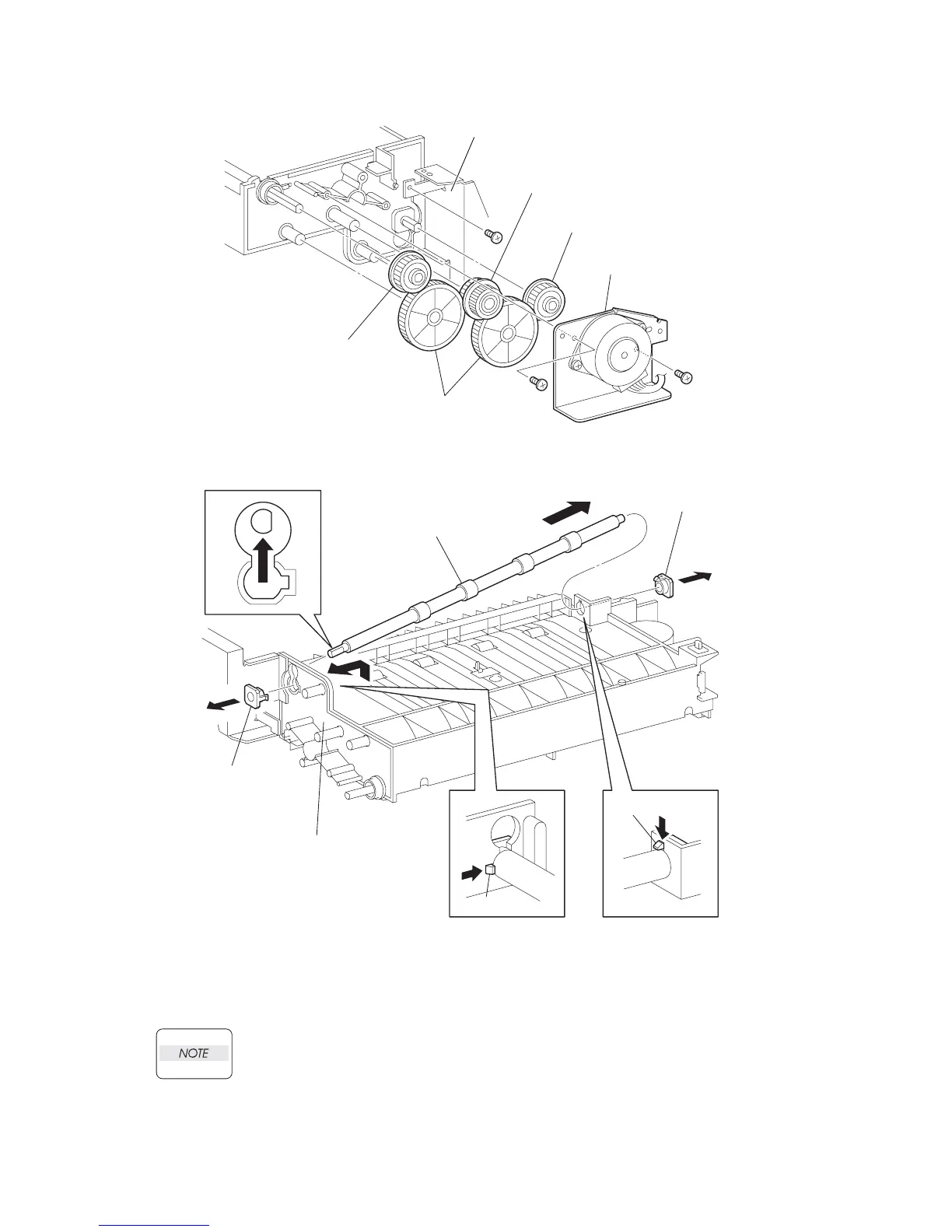

1) Shift the ROLL OCT LOWER in the opposite direction of the arrow to install.
When installing, do not hold the rubber rollers of the ROLL OCT LOWER.
2) Install the BEARING ROLL to the HOUSING OCT at the GEAR 19 side.
3) Install the GEAR 19 (PL 11.1), GEAR 45 (PL 11.1) and GEAR 19/37 (PL 11.1) in order.
HOOK
HOOK
GEAR 45
(PL23.1.7)
GEAR 19
(PL23.1.11)
GEAR 19
(PL23.1.11)
BRACKET MOTOR OCT
(PL23.1.9)
GEAR 19/37
(PL23.1.8)
SUPPORT OCT LEFT
(PL23.1.10)
BEARING ROLL
(PL23.1.13)
BEARING ROLL
(PL23.1.13)
ROLL OCT LOWER
(PL23.1.16)
HOUSING OCT
(PL23.1.14)
JG3814AA
