Chapter 3 Removal and Replacement Procedures (RRPs)
Replacement
1) Install the CHUTE 550 LOWER (PL 12.2.34) to the 550 FEEDER OPTION using the 3 screws
(silver, 6mm).
2) Install the 550 FEEDER OPTION to the frame using the 6 screws (gold tapping, 8mm).
3) Secure the HARNESS ASSY FDR MOT (PL 12.1.37) and HARNESS ASSY SIZE FDR2 (PL
12.1.35) using clamps.
4) Connect the connector (P/J801) of the HARNESS ASSY SIZE FDR1 (PL 12.1) to the HAR-
NESS ASSY SIZE FDR2.
5) Connect the connector (P/J820) of the MOTOR FEEDER (PL 12.1.17) to the HARNESS ASSY
FDR MOT.

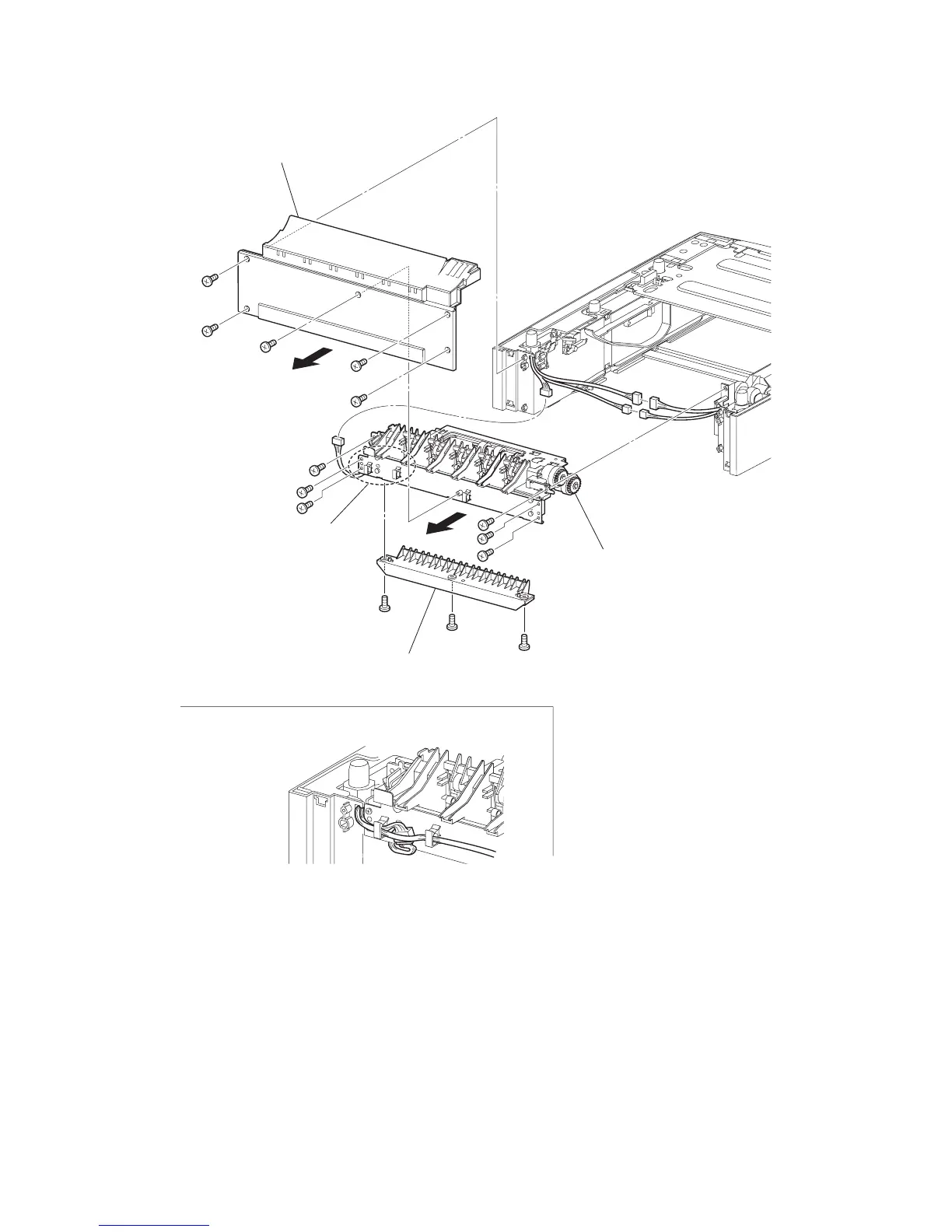

JG3510AA
550 FEEDER OPTION
(PL20.2.1)
COVER RE550
(PL20.1.25)
CHUTE 550 LOWER
(PL20.2.34)
NOTE1)
(SEE Note1)
WHEN ASSEMBLING
To Next Page
