Oki B6500

3 - 231
Chapter 3 Removal and Replacement Procedures (RRPs)
Replacement
1) Install the GEAR NUDGER to the SHFT NUDGER (PL 12.2.9), and secure it with the hook.
Be sure to install the hook of the GEAR NUDGER into the groove of the SHAFT
NUDGER.
When installing, do not hold the rubber rollers of the GEAR NUDGER.
2) Install the ROLL ASSY NUDGER (PL 12.2.11) to the SHFT NUDGER, and secure it with the
hook.
Be sure to install the hook of the ROLL ASSY NUDGER into the groove of the SHAFT
NUDGER.
When installing, do not hold the rubber rollers of the ROLL ASSY NUDGER.

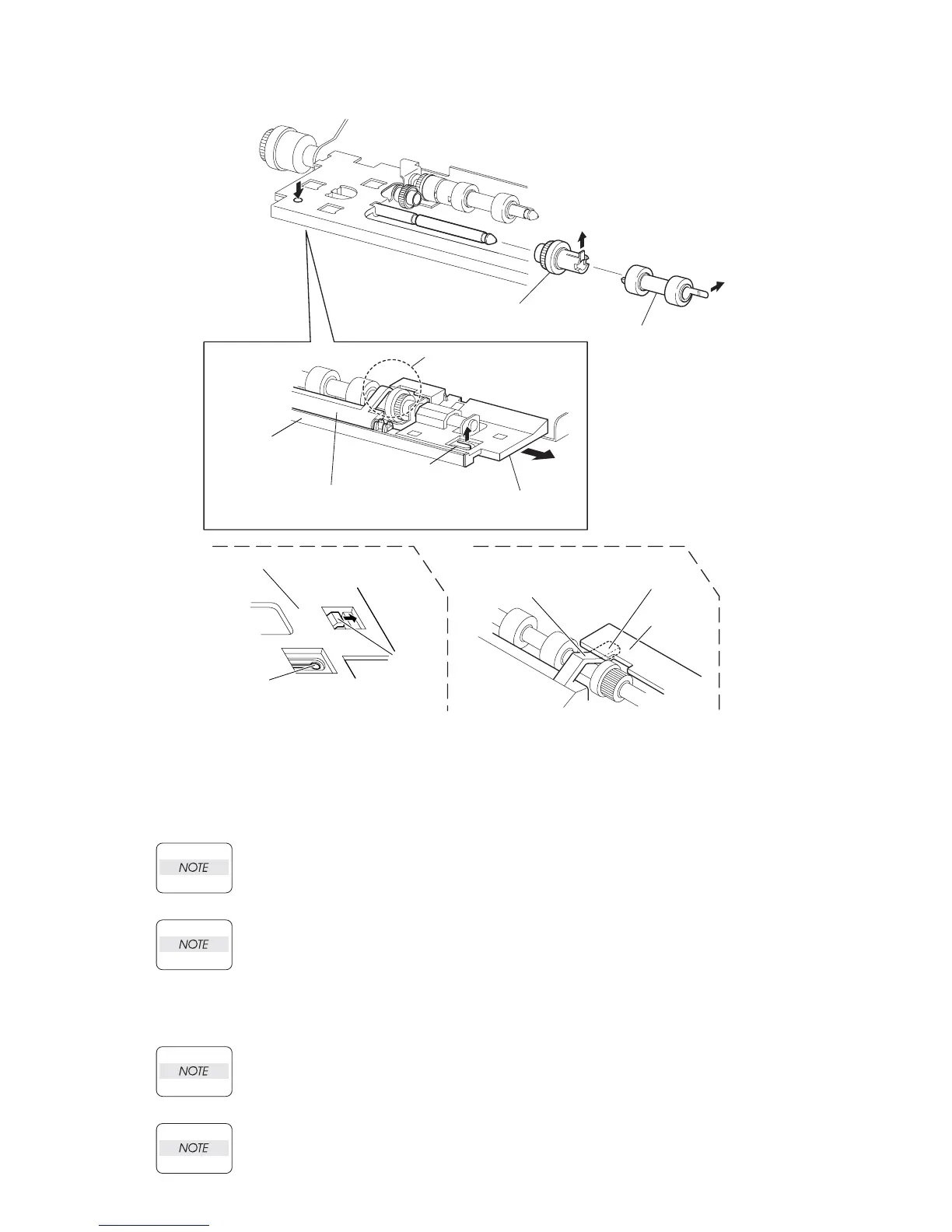

JG3513AA
ROLL ASSY NUDGER
(PL20.2.11)
ROLL ASSY GEAR NUDGER
(PL20.2.10)
ACTUATOR NO PAPER
(PL20.2.6)
SUPPORT NUDGER
(PL20.2.4)
UNDER VIEW
HOLDER LEFT
(PL20.2.5)
CLAW
LIFT UP
(BOSS)
HOLDER
LEFT
LIFT UP (BOSS)
A (SEE DETAILED VIEW)
DETAILED VIEW OF A
ACTUATOR NO PAPER HOOK
HOLDER
LEFT
