Chapter 3 Removal and Replacement Procedures (RRPs)
Replacement

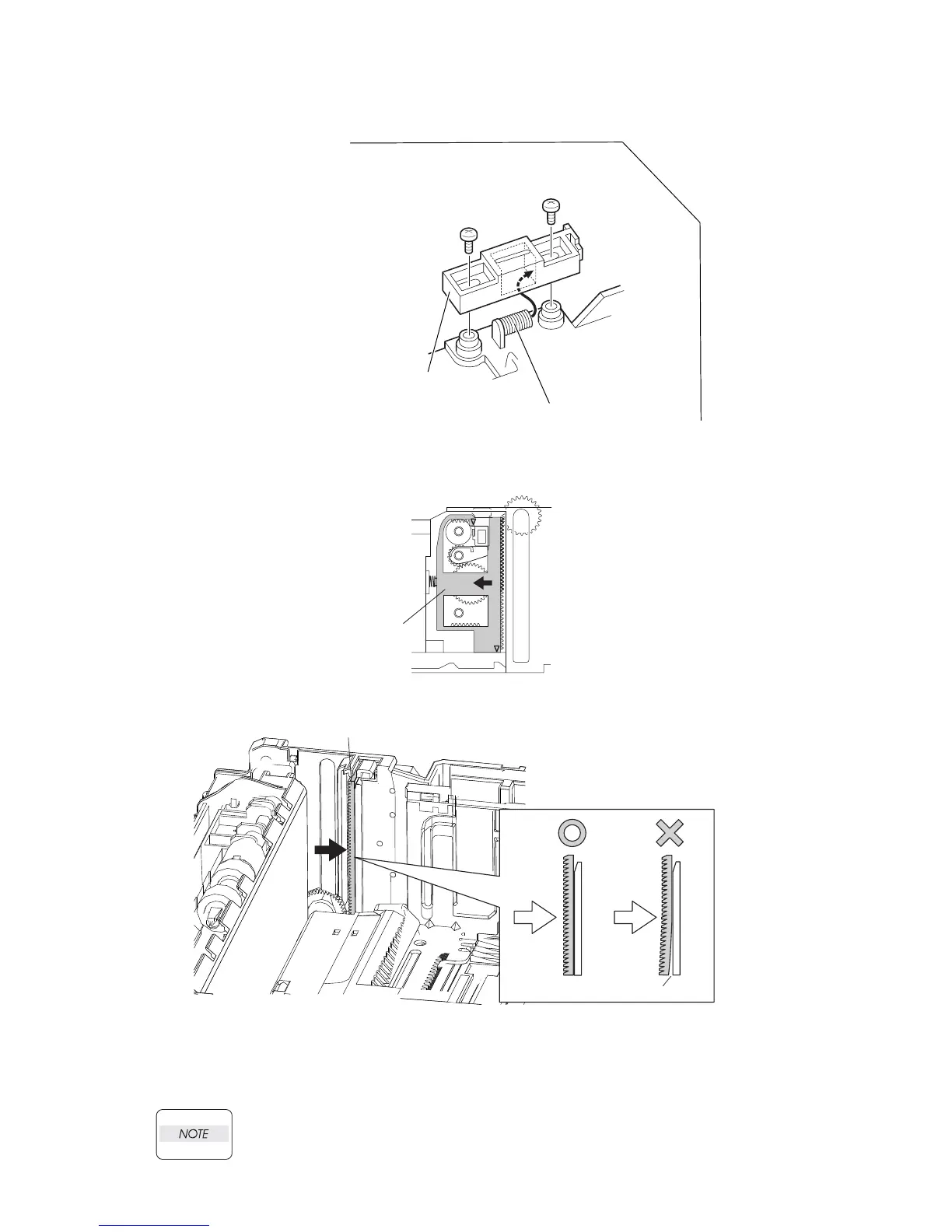

When installing, be sure to lift up the PLATE ASSY BTM. If the PLATE ASSY BTM is
inclined, a paper skew or jam may occur. Check after the installation is completed.
JG3544AA
RACK BTM LOCK 550
Space
RACK BTM LOCK 550
JG3542AA
STOPPER GEAR
SPRING STOPPER GEAR
WHEN ASSEMBLING
NOTE2 (REAR VIEW)
JG3183AA
