PAPER DELIVERY
2-43
SM C231/C237/C238
Detailed
Section
Descriptions
2.7 PAPER DELIVERY
2.7.1 OVERALL

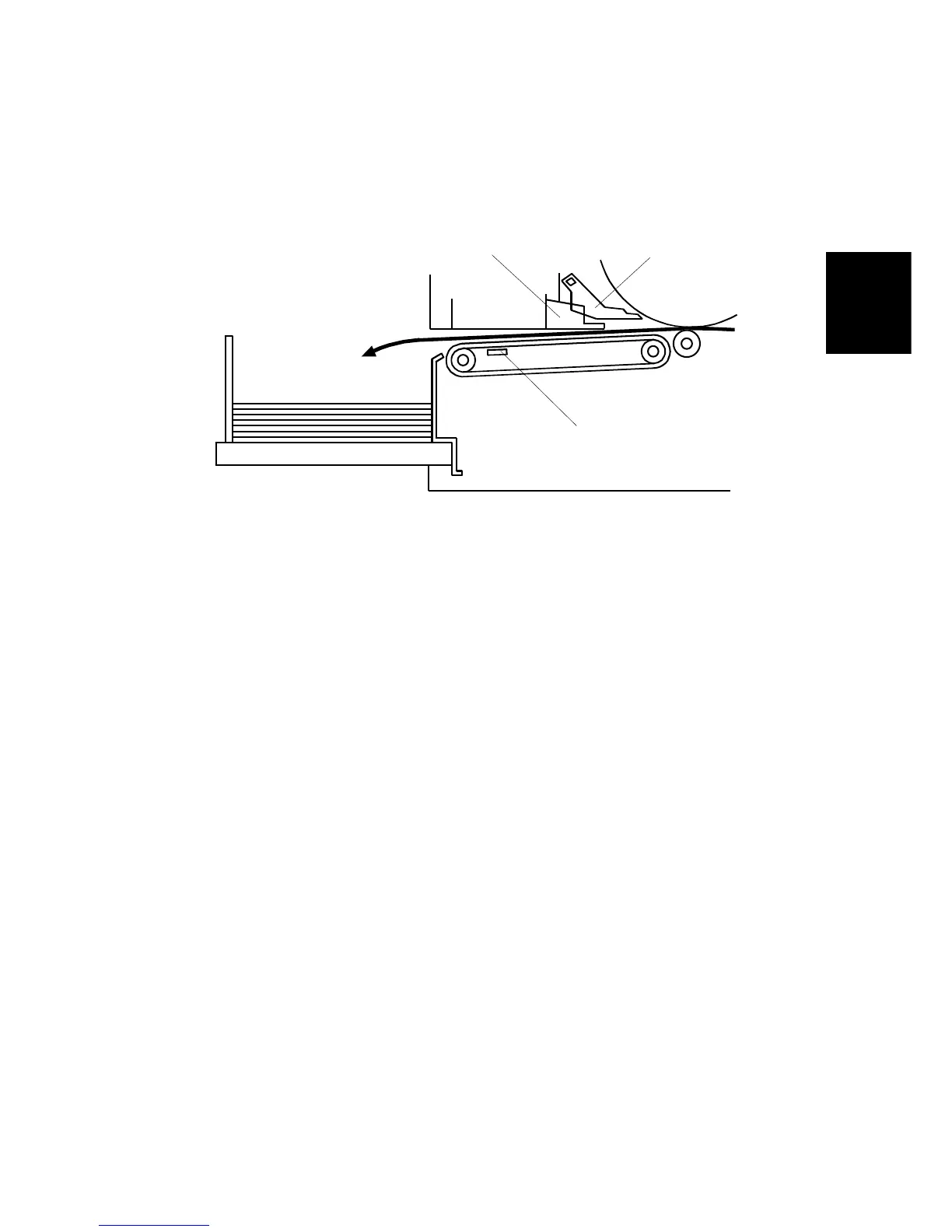

The exit pawl [A] and the air knife [B] separate the paper from the drum. The paper
is transported to the delivery table by the delivery unit, which includes rubber belts
and a vacuum fan motor.
The paper exit sensor [C] (a reflective photosensor) is used to detect paper
delivery jams.
C231D549.WMF
[A]
[B]
[C]
