MASTER FEED
SM 6-19 C267
C267 Service
Manual

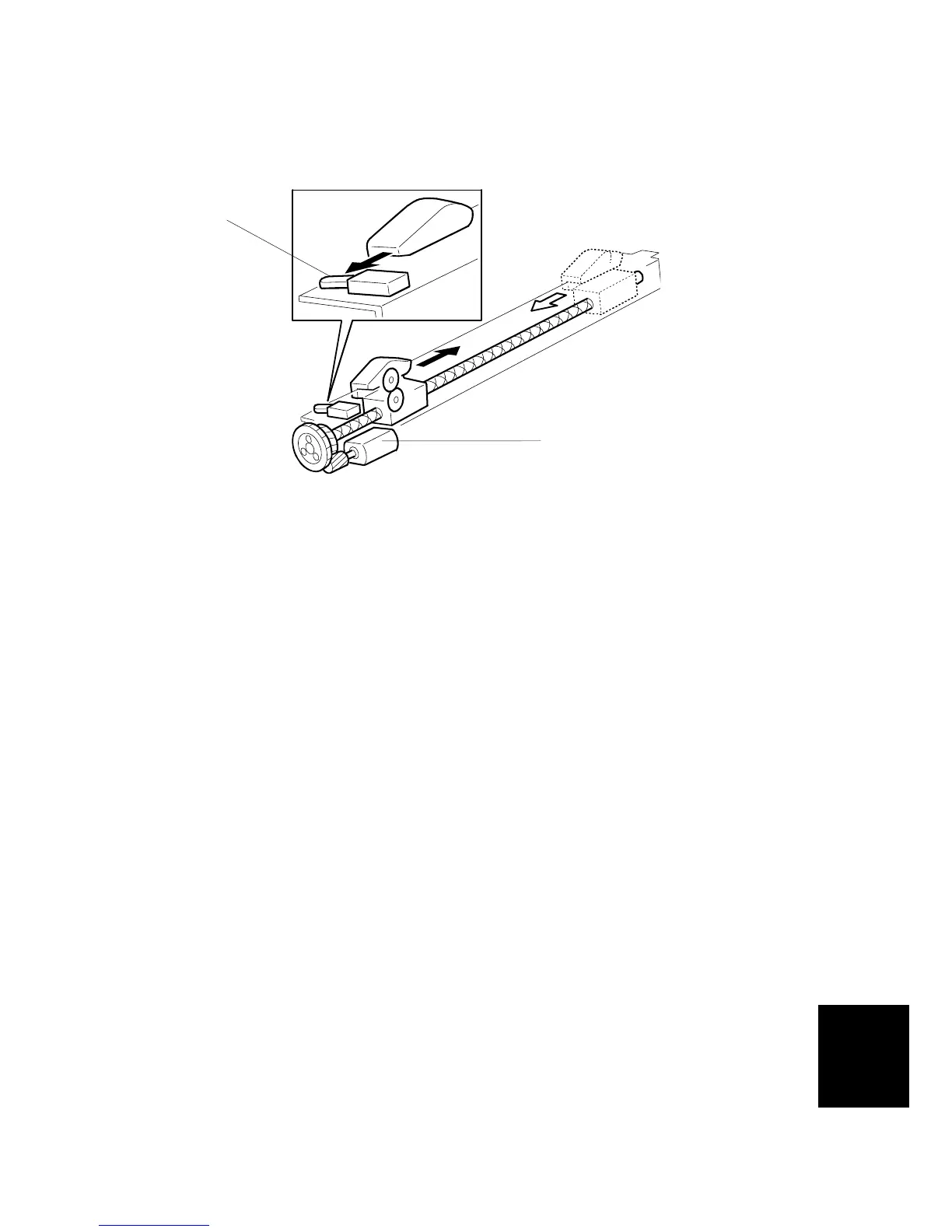

6.7.4 CUTTER MECHANISM
[A]: Cutter motor
[B]: Cutter HP sensor
• When the cutter starts, the drum is stopped at the master eject position (drum
HP).
• The cutter moves backwards and forwards. While the cutter travels towards the
rear (non-operation side), it cuts the master. The motor turns in one direction.
The cutter returns to the home position when it reaches the rear because of the
two different spiral threads on the screw shaft.
• The cutter usually cuts a master of about 474 mm in length.
After cutting, the drum starts turning again to wrap the remaining part of the master
around the drum. The leading edge of the master that was cut remains at the
cutting position, ready to make the next master.
C267D941.WMF
[A]
[B]
