6.12 ERROR DETECTION
6.12.1 MASTER EJECT JAM (E JAM LOCATION INDICATOR)
Picking up the used master from the drum
Check 1:
The retry mechanism will turn on when the master eject sensor does not turn on
when the master eject motor is rotating.
Check 2:
The E jam indicator lights (master eject jam), when the master eject sensor does
not turn on between closing the clamper and turning on the 2
nd
feed timing sensor.
Compressing the used master
Check:
If the master eject sensor detects a master when the pressure plate limit sensor
turns on, the E jam indicator lights.
Just after turning on the main switch
Check:
If the master eject sensor is on (master detected), the E jam indicator lights.

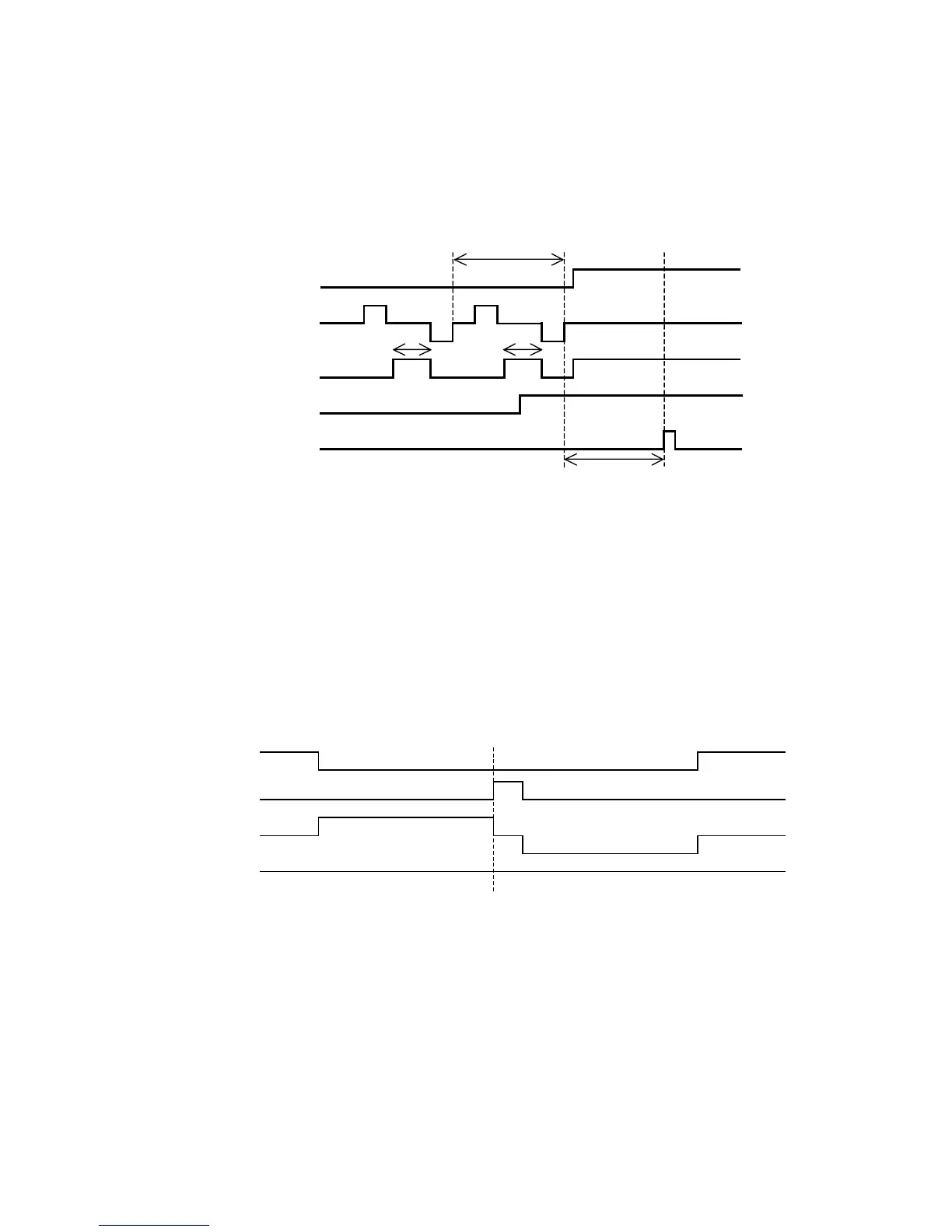

Master Eject Motor
Master Eject Sensor
2nd Feed Timing Sn
Main Motor
Open Open
Clamper Motor
Close Close
Check 2
700ms
700ms
Check 1
C267D903.WMF
Pressure Plate
H.P. Sn.
Pressure Plate
Limit Sn.
Pressure Plate
Motor
Master Eject
Sn.
Check
C267D956.WMF
