EXTERIOR COVER REMOVAL
6-2
C231/C237/C238 SM

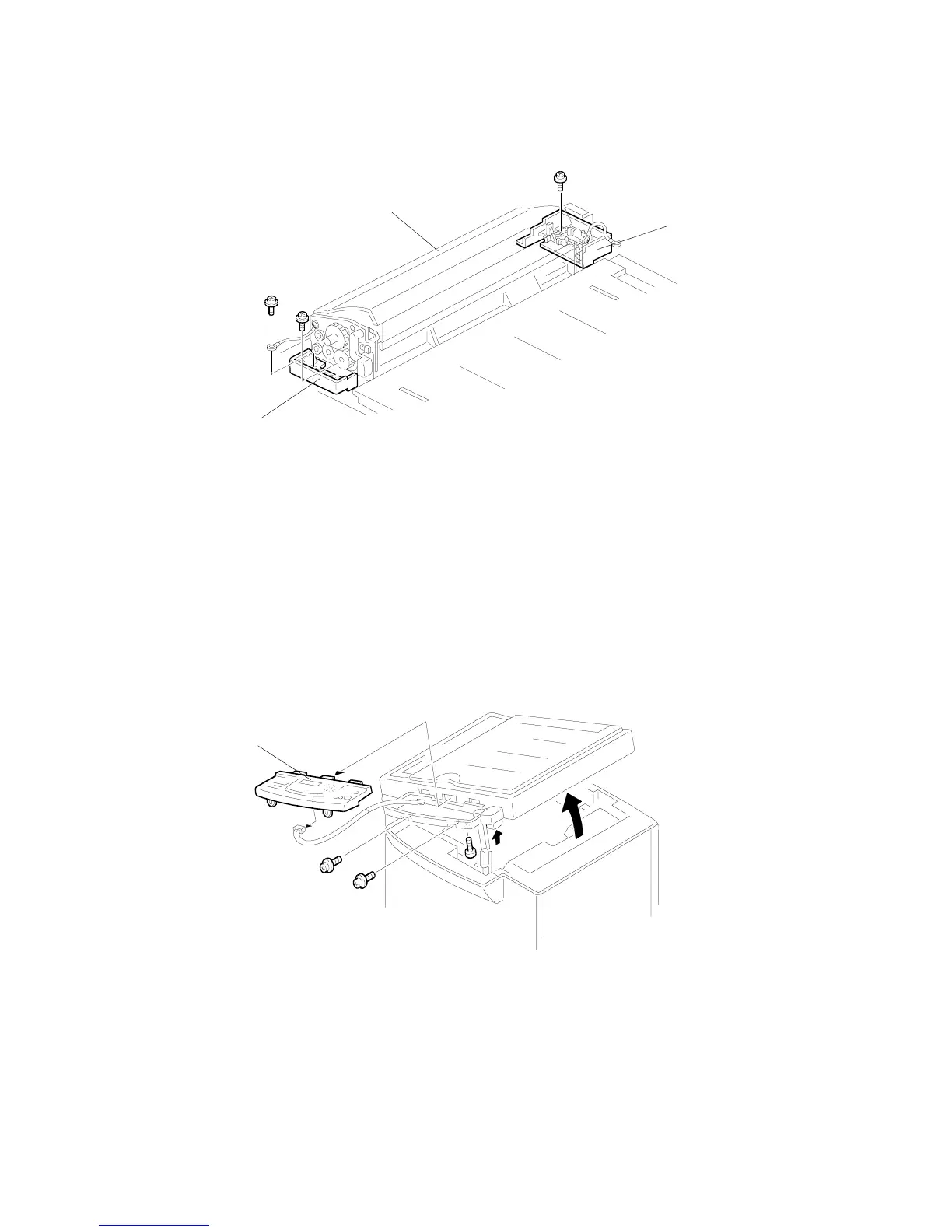

E: ADF Lower Front Cover (2 screws, 1 grounding wire)
F: ADF Lower Rear Cover (2 screws, 1 grounding wire)
G: ADF Unit (2 connectors)
6.1.2 OPERATION PANEL
A: Operation Panel Assembly (3 tapping screws, 1 connector)
C231P502.WMF
C231P503.WMF
[E]
[F]
[G]
[A]
