MASTER EJECT
C267 3-24 SM

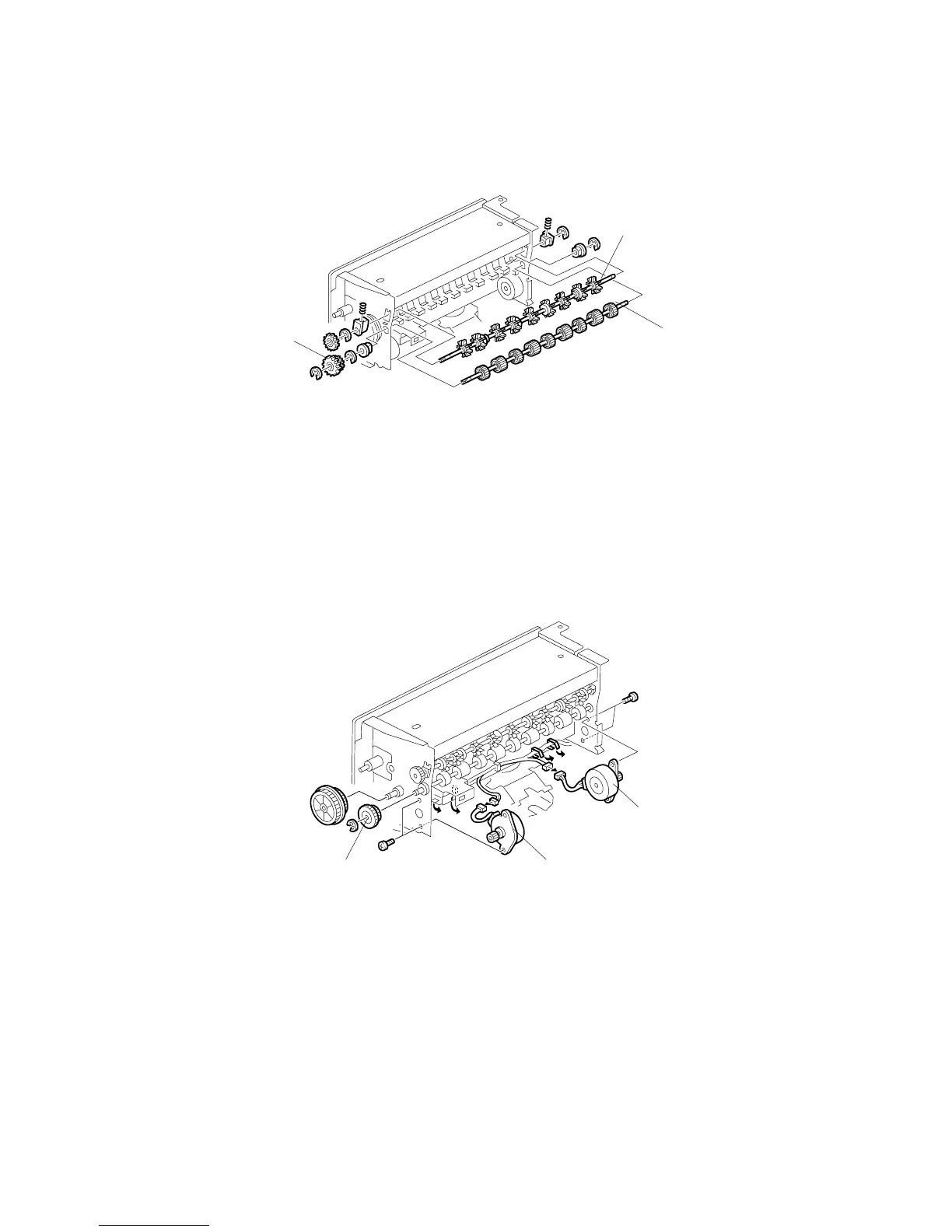

3.6.2 MASTER EJECT ROLLERS
Master eject unit ( 3.6.1)
[A]: Gears ( x 1)
[B]: Lower master eject roller ( x 2)
[C]: Upper master eject roller ( x 2, 2 springs)
3.6.3 MASTER EJECT MOTOR / PRESSURE PLATE MOTOR
z Master eject unit ( 3.6.1)
[A]: Gears ( x 1)
[B]: Master eject motor (= x 2, x 1, x 2)
[C]: Pressure plate motor (= x 2, x 1, x 2)
C267R062.WMF
C267R063.WMF
[A]
[B]
[C]
[A] [B]
[C]
