6.9.11 PAPER TABLE SIDE FENCE MECHANISM

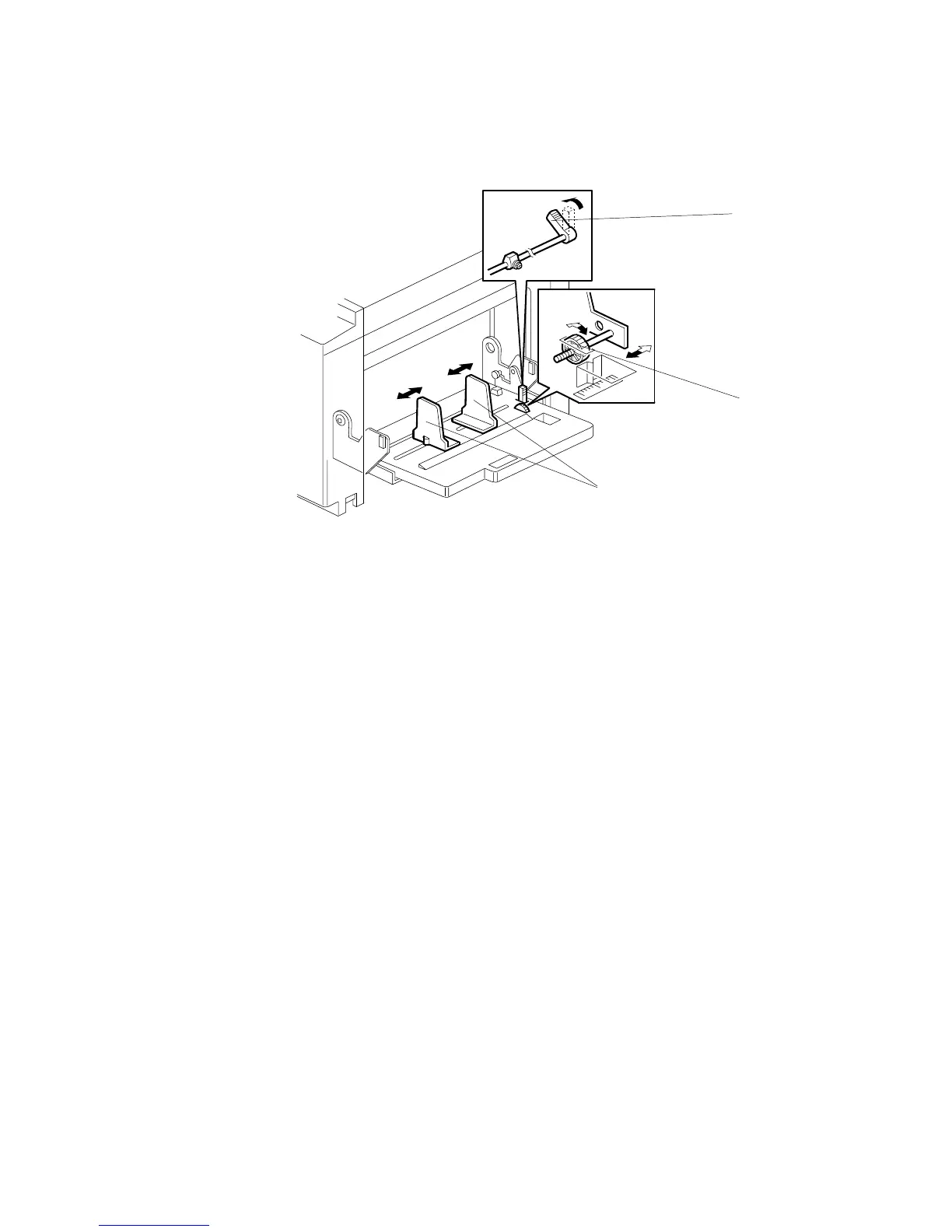

The left and right side fences [A] move together due to a rack and pinion
mechanism. There is a lock lever [B] to hold the side fences in position.
NOTE: The lock lever may be useful if there is no dedicated operator and some of
the operators cannot set the side fences properly, causing paper feed
problems. Advise the operator to use the lock lever once the paper fences
are properly adjusted.
Paper Table Side-to-Side Shift Mechanism
The paper table shifting dial [C] shifts the image across the page. If the dial is
turned, the whole paper table moves towards one side or the other.
C267D952.WMF
[A]
[B]
[C]
