Ricoh C231 - Side Edge Paper Press Plate Mechanism

PAPER FEED
SM 6-35 C267
C267 Service
Manual
6.9.4 SIDE EDGE PAPER PRESS PLATE MECHANISM
For some paper types, the side edges of the paper might curl up because the
centre of the paper is pressed down by the paper feed roller. This will cause paper
jams to occur.
To prevent the curling up of the paper side edges, the paper guide plates [A] press
the edges down.

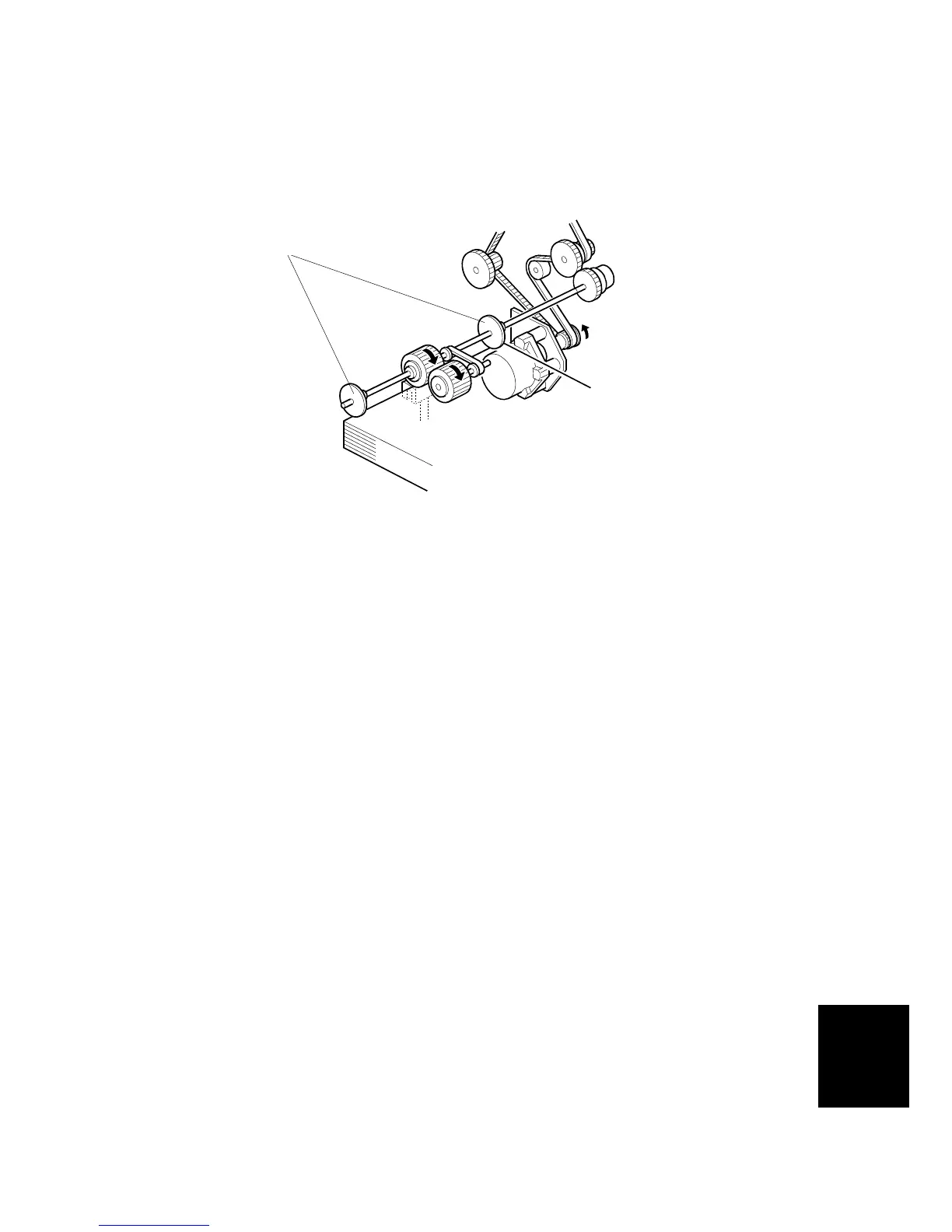

C267D016.WMF
[A]
