ORIGINAL FEED SECTION
6-16
C231/C237/C238 SM
6.4.10 COVER SENSORS

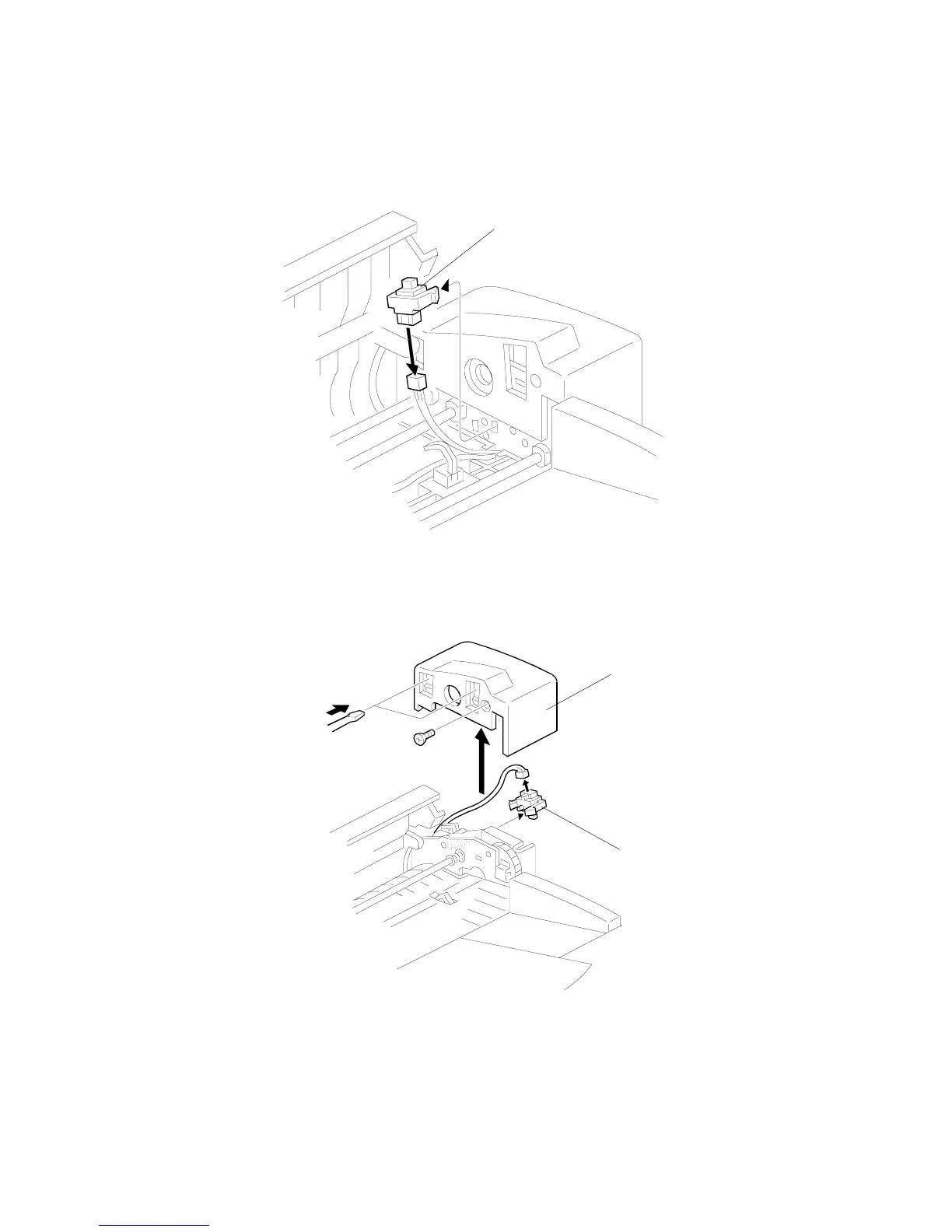

A: ADF Cover Switch
A: Upper Rear Cover (1 screw, 2 hooks)
B: ADF Switch
C231P517.WMF
C231P518.WMF
[A]
[A]
[B]
