EXTERIOR COVER REMOVAL
6-4
C231/C237/C238 SM
6.1.5 OTHER COVERS

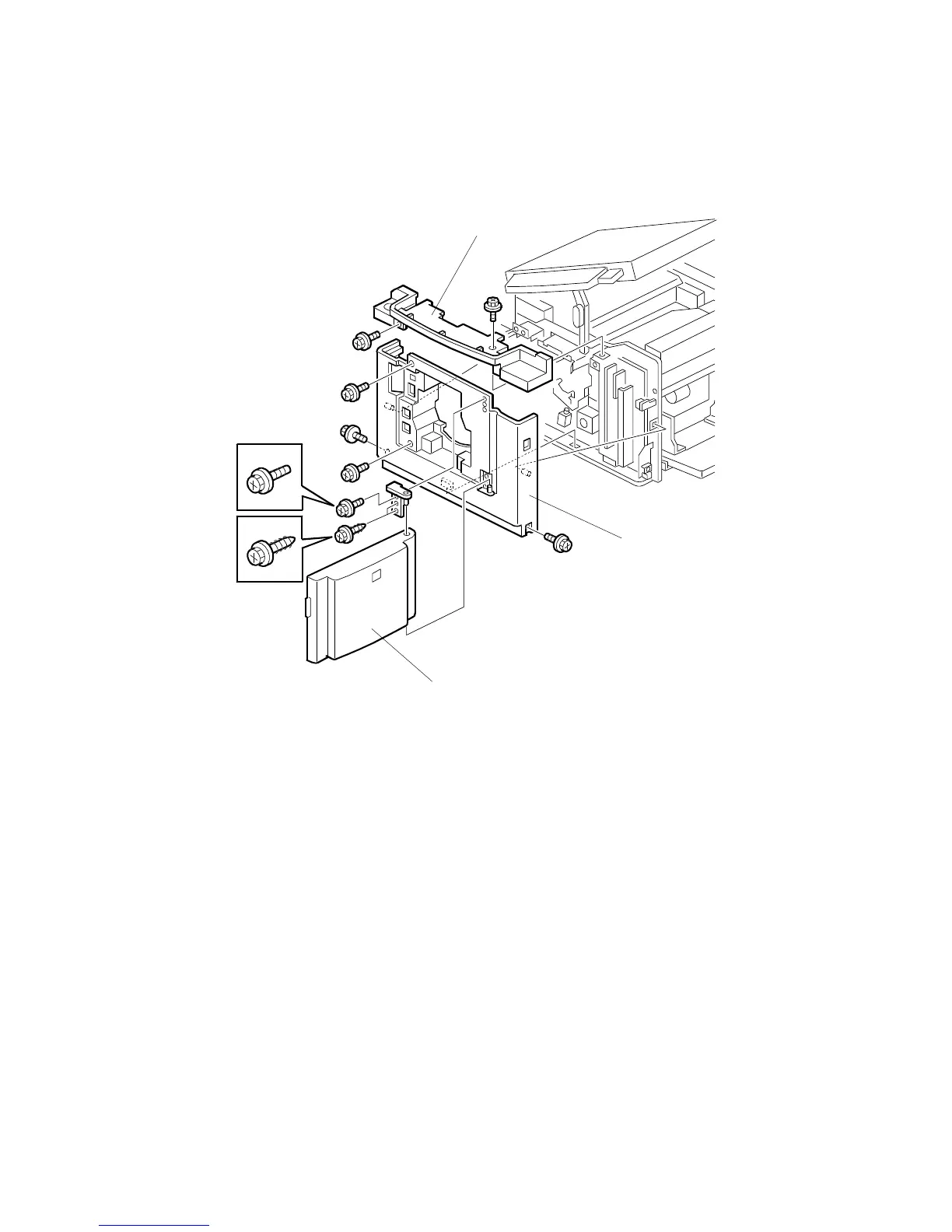

A: Front cover (5 screws).
B: Front door (2 screws).
NOTE:
The two screws are different in shape, as shown.
C: Operation panel under cover (2 screws).
C231R532.WMF
[A]
[B]
[C]
