User's Guide 8-2 PCRIP-EZ1
HARDWARE INSTALLATION
1. The Controller connects the Priport to the computer using cables. (The computer and Priport are not directly
connected to each other.) The inputs to the Priport Controller replicate those of a standard printer, including
Parallel and AppleTalk® inputs. For the PC, the required cable is a standard IBM-PC parallel printer cable
that is not included with the Controller. The Macintosh is connected to the AppleTalk port using a standard
AppleTalk/LocalTalk or AppleTalk/PhoneTalk cable that is
not
included with the Controller.
2. The Controller is connected from the Priport port on its backpanel to the input port on the back of the Priport.
The required cable is a special DB-25M to DB-25F cable that is included with the Controller.

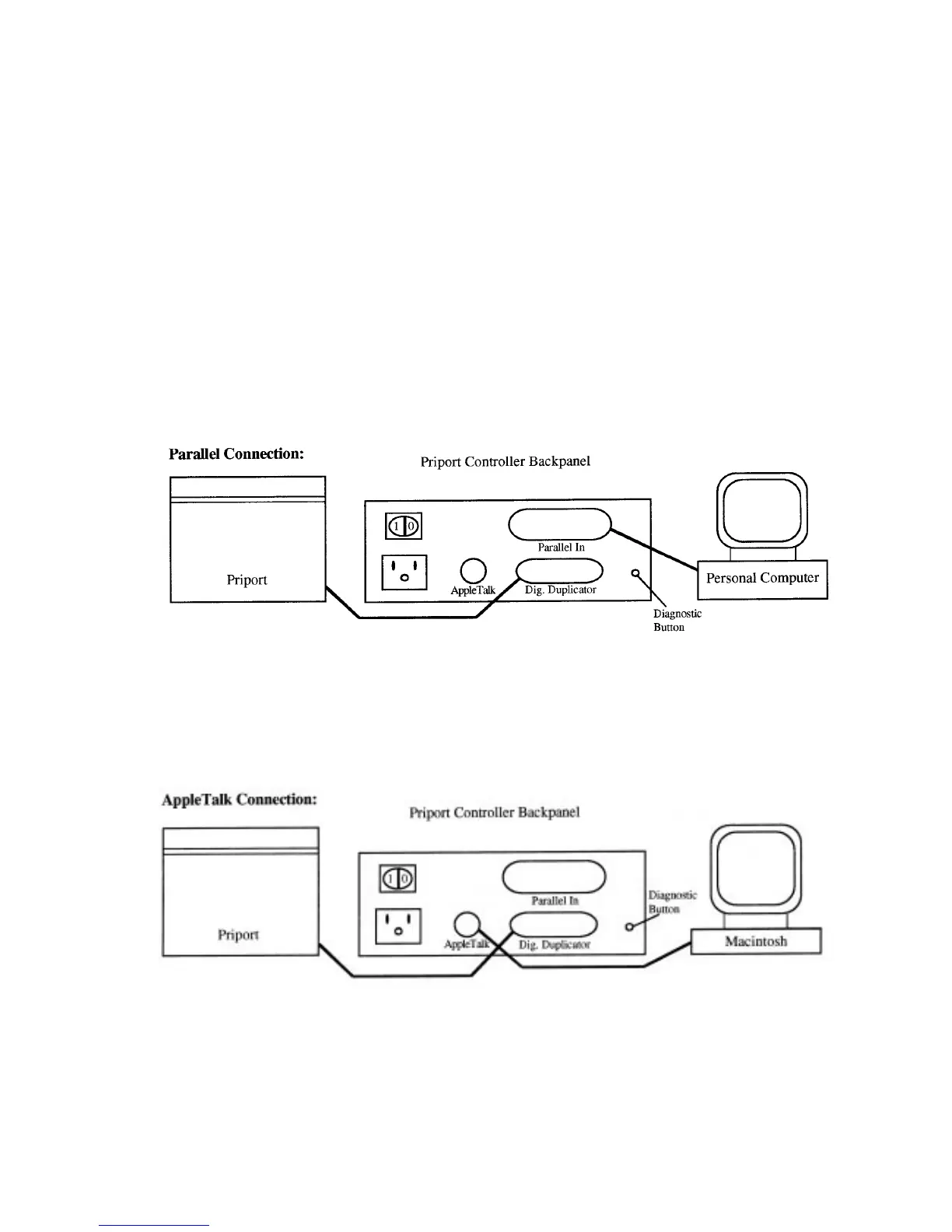

3. Cabling Diagrams:
