SCANNER
C267 3-10 SM
3.4.6 PLATEN COVER SENSOR
• Top rear cover ( 3.2.4)

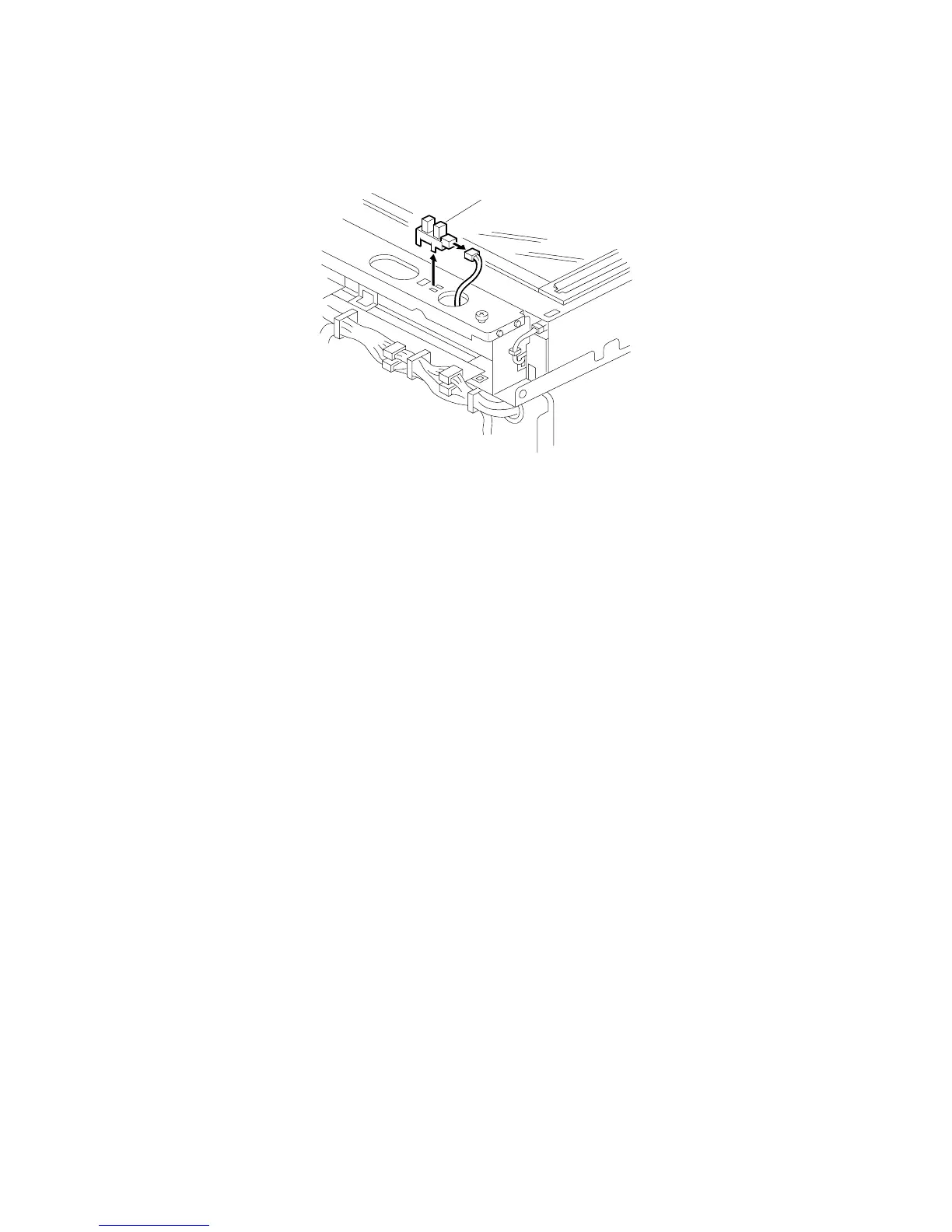

[A]: Platen cover sensor ( x 1).
C267R082.WMF
[A]
