Ricoh C231 - Cutter Unit

MASTER FEED
C267 3-20 SM

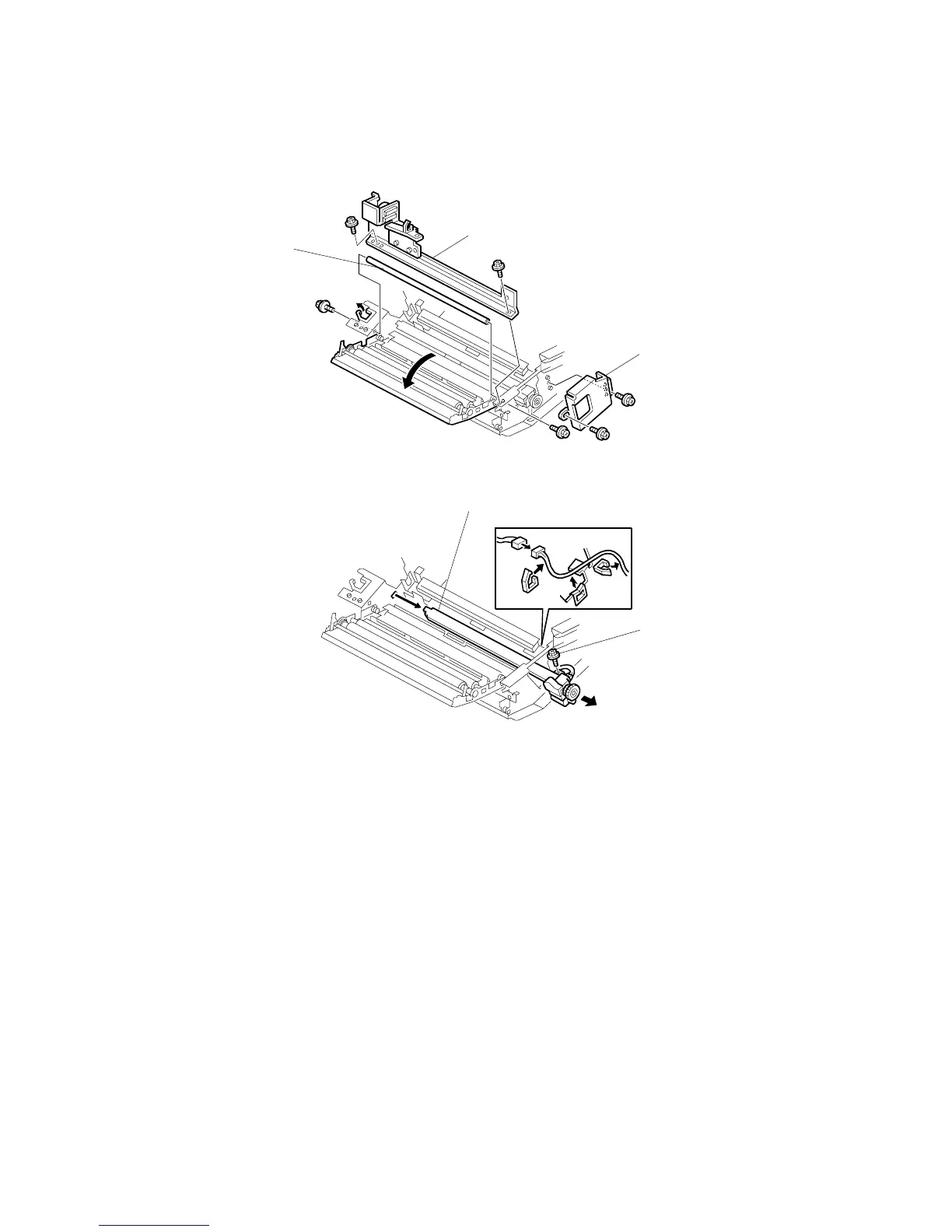

3.5.6 CUTTER UNIT
z Master making unit ( 3.5.1)
[A]: Bracket ( x 2)
[B]: Shaft ( x 2)
[C]: Bracket ( x 2)
[D]: Cutter unit (= x 3,  x 1,  x 1)
NOTE: To remove the screw [E], you must slide the thermal head a small
distance towards the paper feed table.
C267R059.WMF
C267R060.WMF
[A]
[B]
[C]
[D]
[E]
