Ricoh C231 - Feed Unit; Paper Height Sensor 1; 2

PAPER FEED
C267 3-30 SM
3.7.3 PAPER HEIGHT SENSOR 1 / 2
• Master making unit ( 3.5.1)
[A]: Paper feed unit cover ( x 2)
[B]: Paper feed unit cover – small ( x 4,  x 1)
[C]: Paper height sensor 1 ( x 1,  x 1)
[D]: Paper height sensor 2 ( x 1,  x 1)

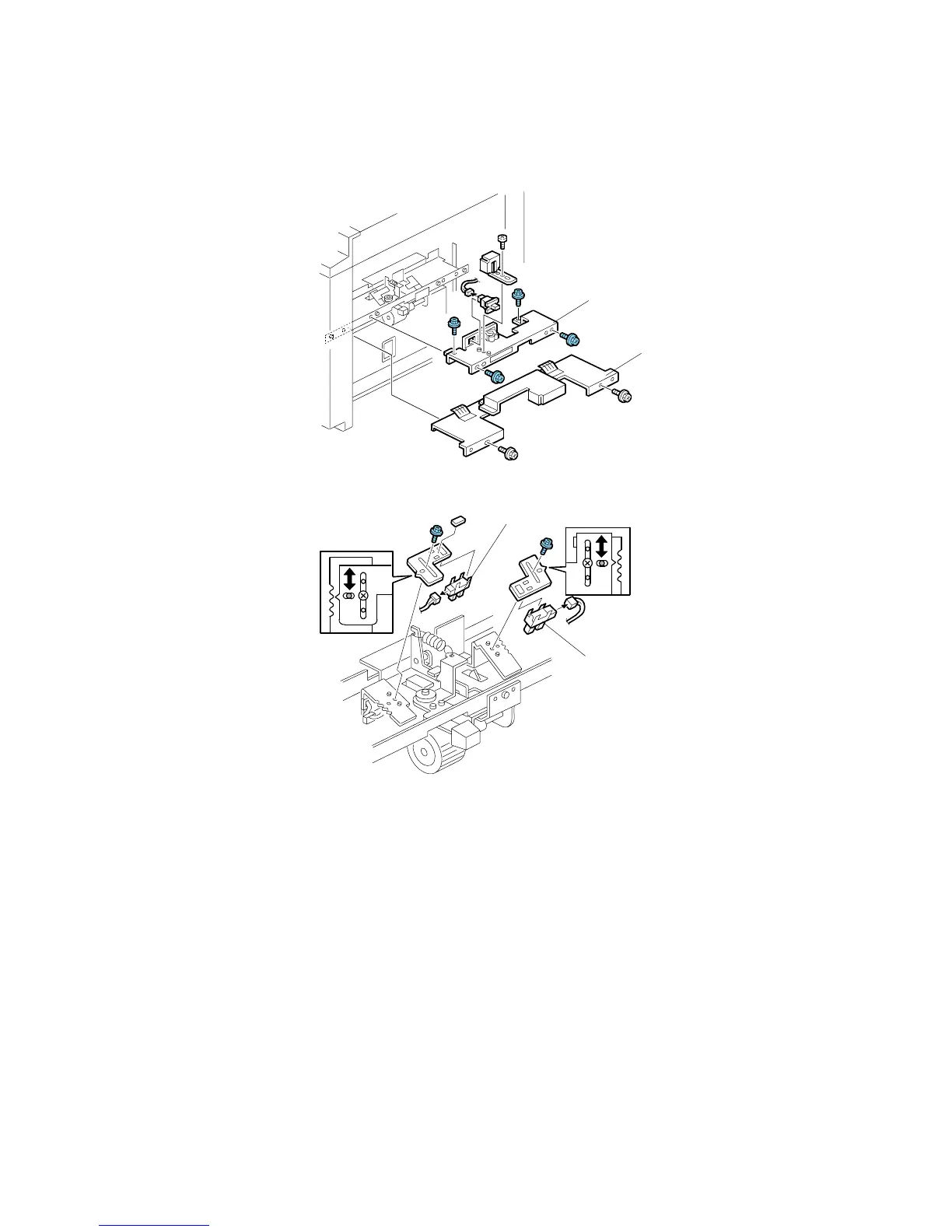

C267R036.WMF
C267R037.WMF
[A]
[B]
[C]
[D]
