Ricoh C231 - Vacuum Motor Removal

PAPER DELIVERY SECTION
6-51
SM C231/C237/C238
Replacement
and
Adjustment
6.10.3 VACUUM MOTOR REMOVAL
1. Turn off the main switch and disconnect the power plug.
2. Remove the vacuum unit. (See 6.10.1 Vacuum Unit Removal.)

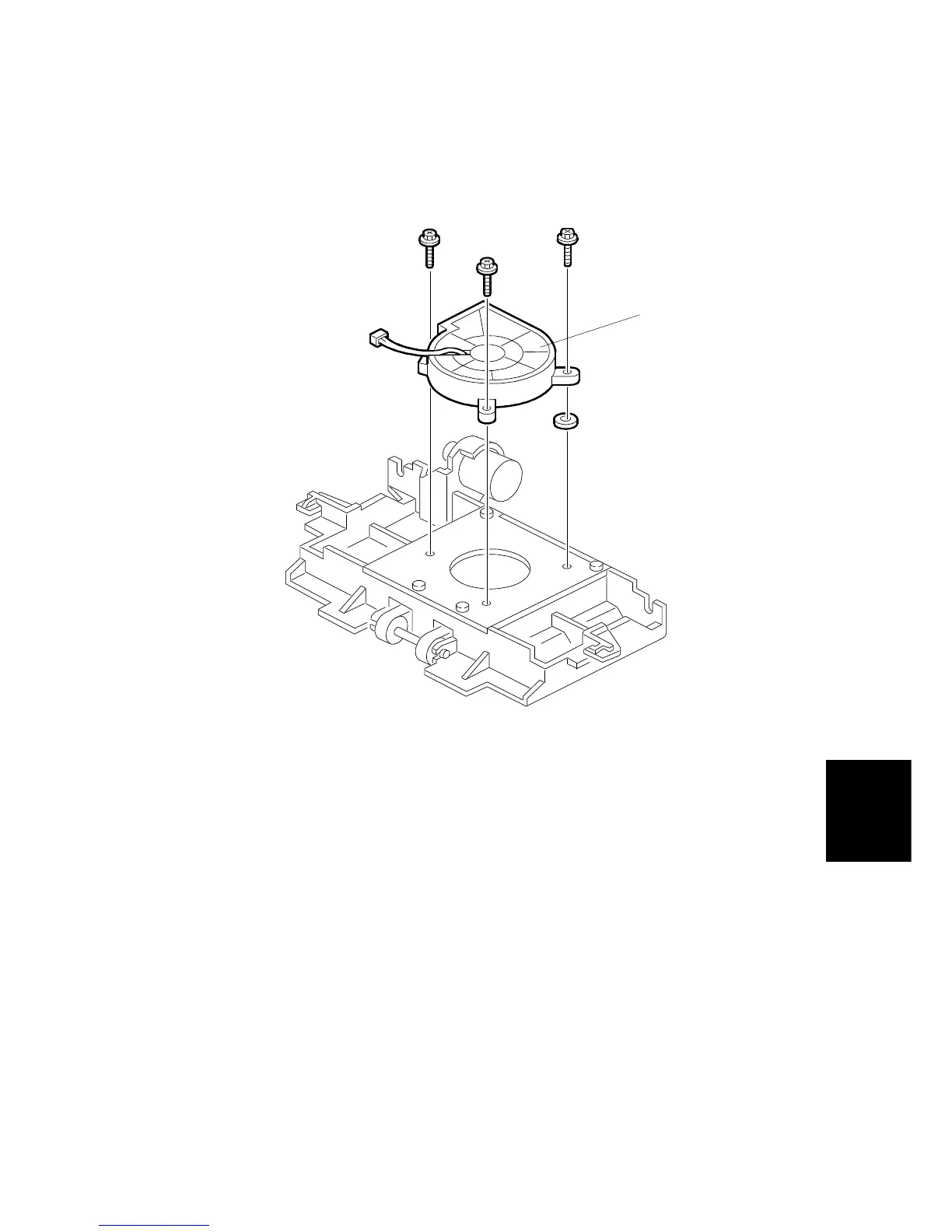

3. Remove the vacuum motor [A] (3 screws, 1 connector).
C231R552.WMF
[A]
