INSTALLATION PROCEDURE
3-10
C231/C237/C238 SM
Installation Procedure

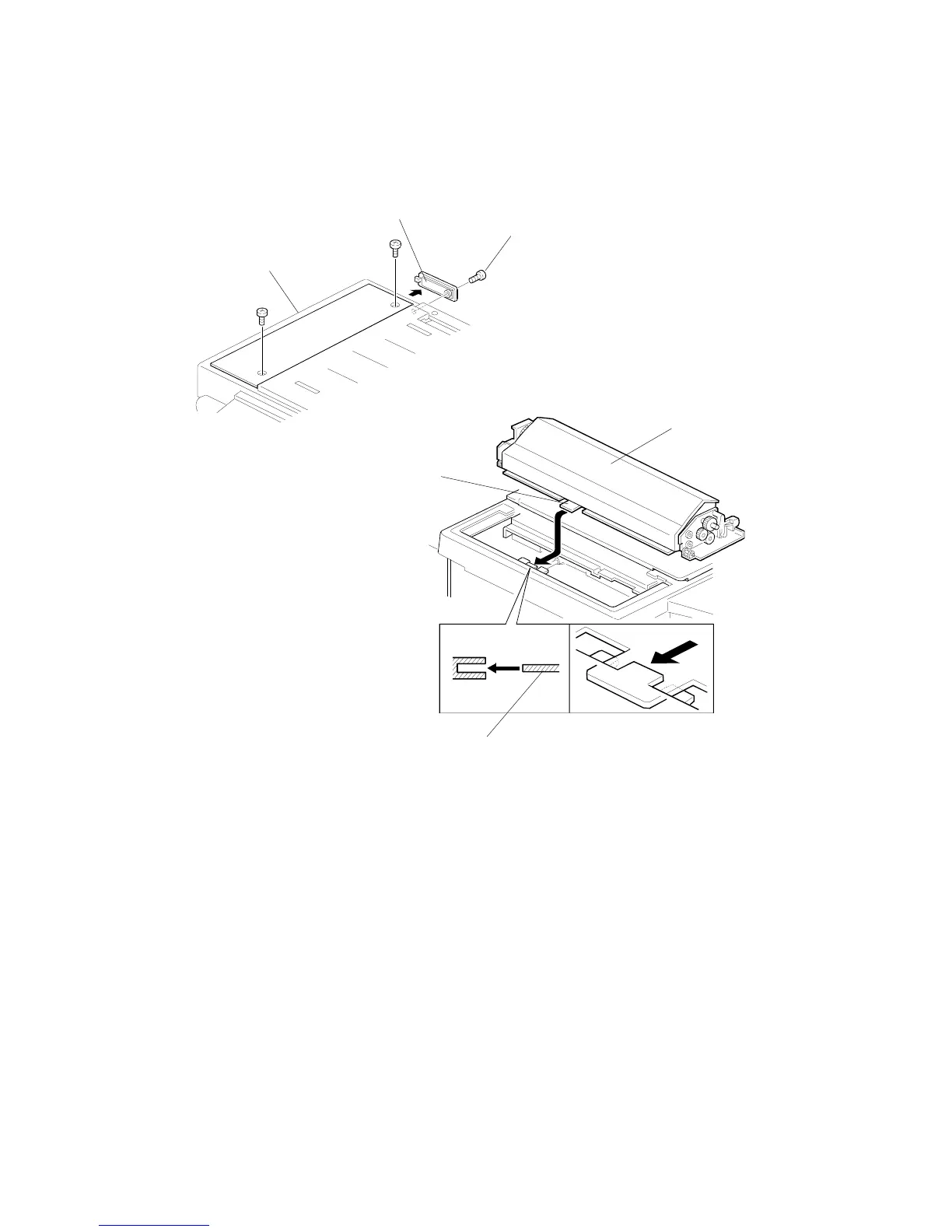

1. Remove the cover [A] (2 screws).
2. Remove the small cover [B] (1 screw). Retain the screw [C] for step 9.
3. Mount the ADF unit [D].
NOTE:
When you mount the ADF unit [D] onto the scanner unit, make sure to
insert the tab [E] as shown above.
C231I511.WMF
C231i550.wmf
[A]
[B]
[C]
[D]
[E]
[E]
