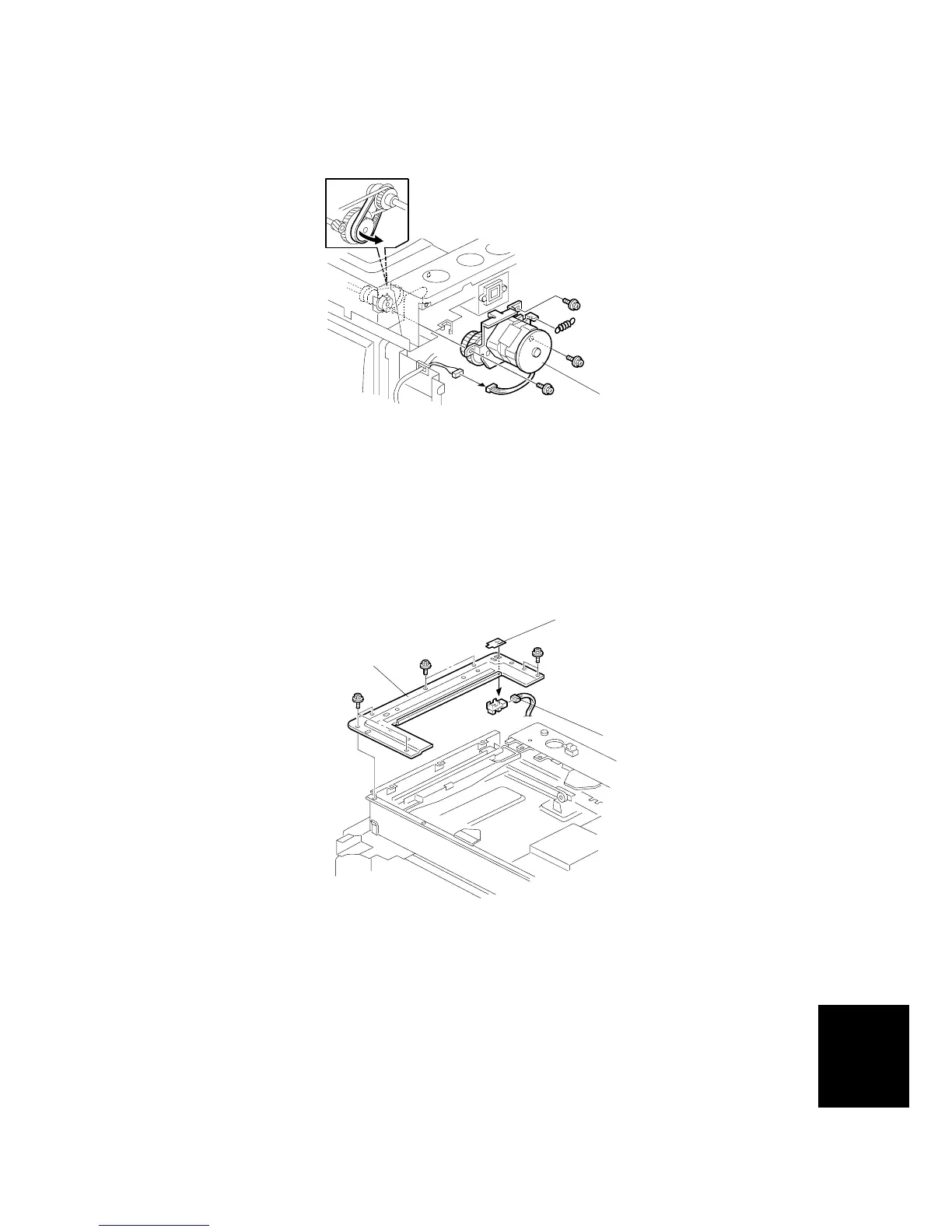

3.4.4 SCANNER MOTOR
• Rear cover ( 3.2.3)
• Exposure glass ( 3.4.1)
[A]: Scanner motor ( x 3,  x 1, = x 1, 1 spring, 1 belt)
NOTE: When reassembling, install the belt first, and set the spring next. Fasten
the leftmost screw (viewed from the rear), then fasten the other two screws.
3.4.5 SCANNER HOME POSITION SENSOR
• Left upper cover ( 3.2.4)
• Top rear cover ( 3.2.4)
• Front cover ( 3.2.1)
• Operation panel ( 3.2.2)
• Exposure glass, DF exposure glass (if installed) ( 3.4.1)
[A]: Scanner left lid ( x 7,  x 1).
[B]: Sensor tape
[C]: Scanner home position sensor
