SCANNER
C267 3-6 SM
3.4 SCANNER

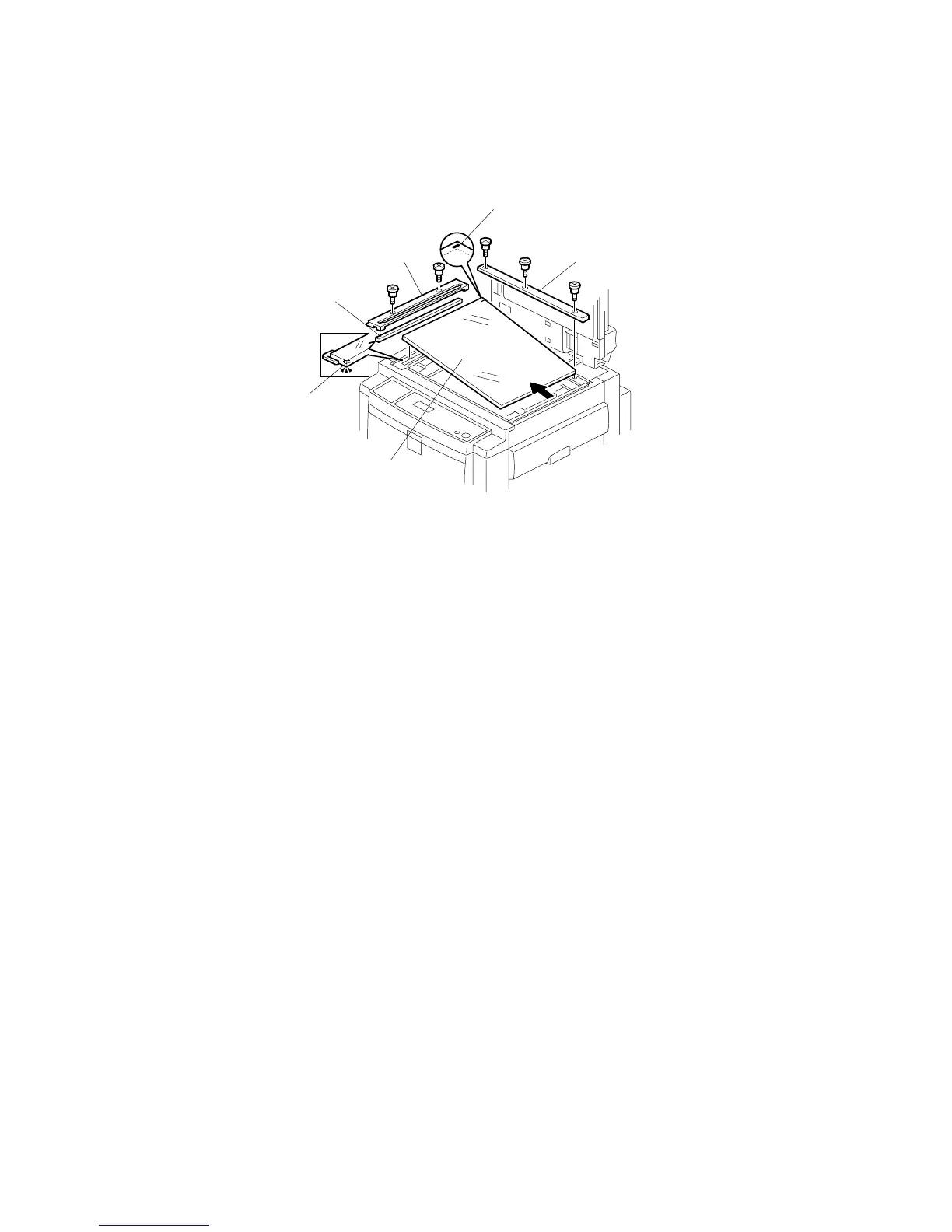

3.4.1 EXPOSURE GLASS/DF EXPOSURE GLASS, SCALES
Exposure Glass
[A]: Left scale ( x 2)
[B]: Rear scale ( x 3)
[C]: Exposure glass
NOTE: When reinstalling, make sure that the mark [E] is at the rear left corner, and
that the left edge is aligned with the support on the frame.
DF Exposure Glass
[A]: Left scale ( x 2)
[D]: DF exposure glass
NOTE: When reinstalling, make sure that the mark [F] is on the bottom.
C267R008.WMF
[A] [B]
[C]
[D]
[E]
[F]
