MECHANICAL COMPONENT LAYOUT
1-11
SM C231/C237/C238
Overall
Information

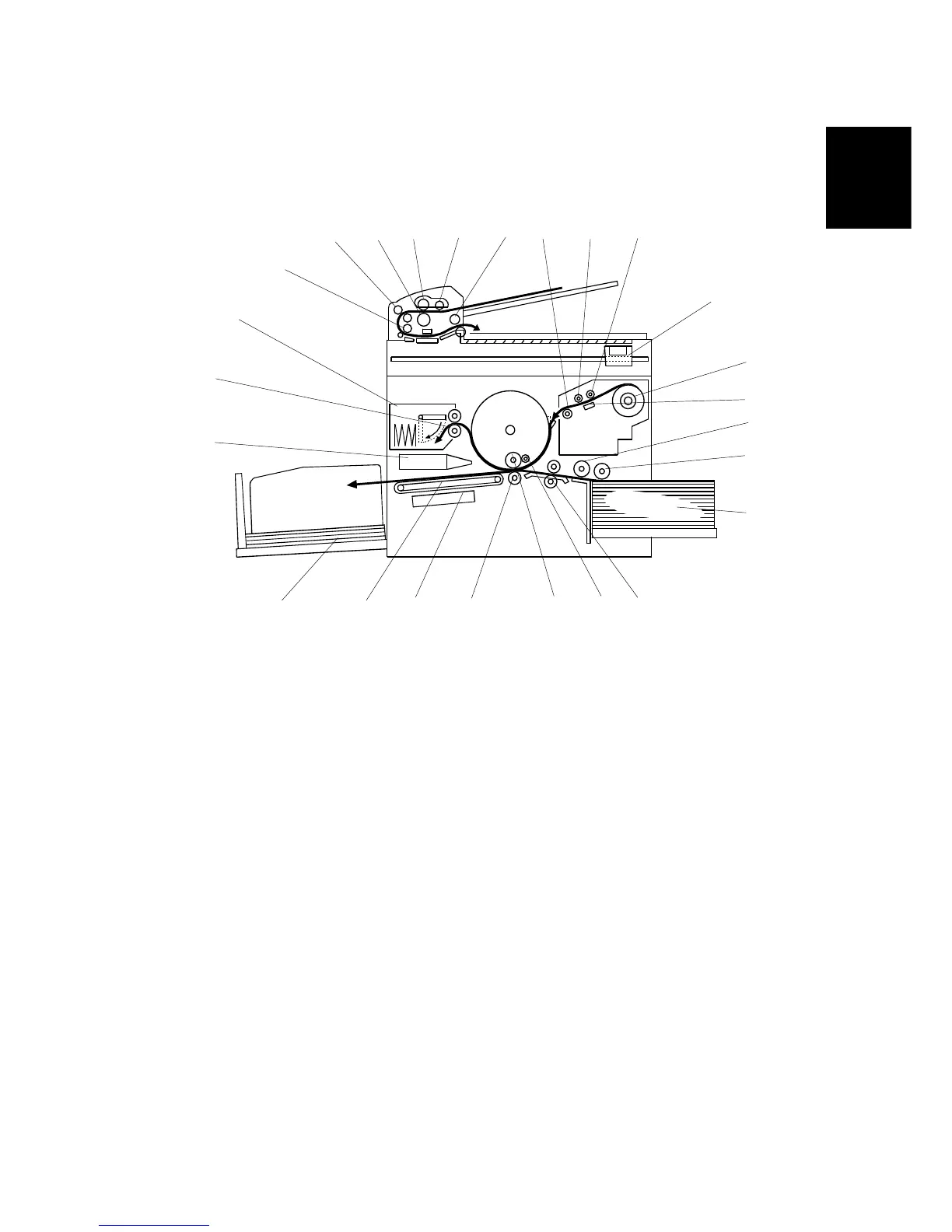

1.4 MECHANICAL COMPONENT LAYOUT
1. Tension Roller
2. Master Feed Roller
3. Platen Roller
4. Scanner
5. Master Roll
6. Thermal Head
7. Paper Feed Roller
8. Paper Pick-up Roller
9. Paper Table
10. Registration Roller
11. Doctor Roller
12. Ink Roller
13. Press Roller
14. Vacuum Fan Motor
15. Transport Belts
16. Paper Delivery Table
17. Air Knife Fan Motor
18. Master Eject Roller
19. Master Eject Box
20. DF R1 Roller
21. DF R0 Roller
22. DF Separation Roller
23. DF Document Feed Roller
24. DF Pick-up Roller
25. DF R2 Roller
C231V500.WMF
1232524232221
4
5
6
7
8
9
10
11121415
17
18
19
20
16 13
