Ricoh C231 - Exposure Lamp, Lamp Stabilizer Board

SCANNER
C267 3-8 SM
3.4.3 EXPOSURE LAMP, LAMP STABILIZER BOARD
• Exposure glass ( 3.4.1)

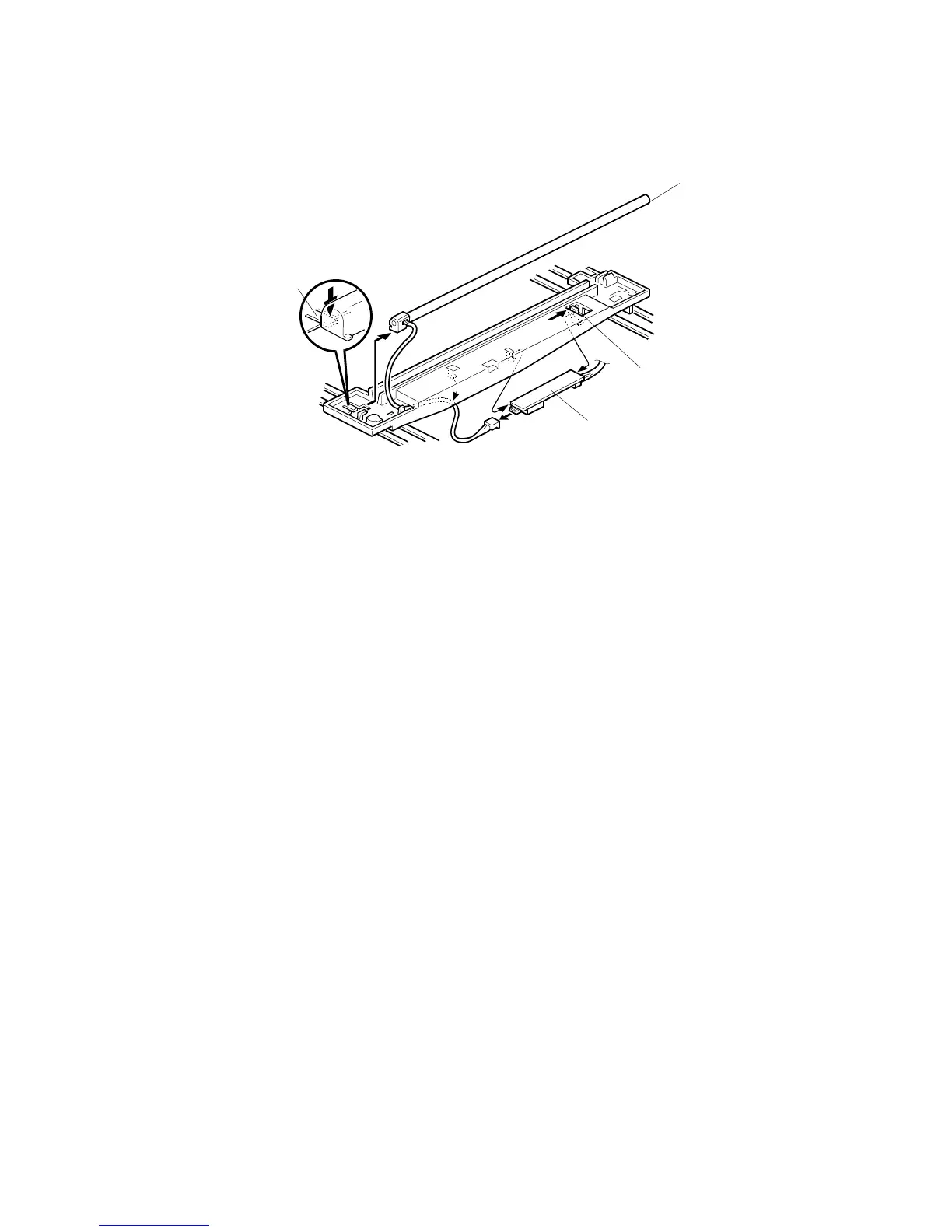

1. Slide the first scanner to a position where the front end of the lamp is visible.
2. Place one hand under the lamp stabilizer board [A] and release the hook [B].
3. Remove the lamp stabilizer board [A] ( x 2).
4. Press the plastic latch [C] and push the front end of the lamp toward the rear.
5. Remove the lamp [D] (with the cable).
C267R902.WMF
[A]
[B]
[C]
[D]
