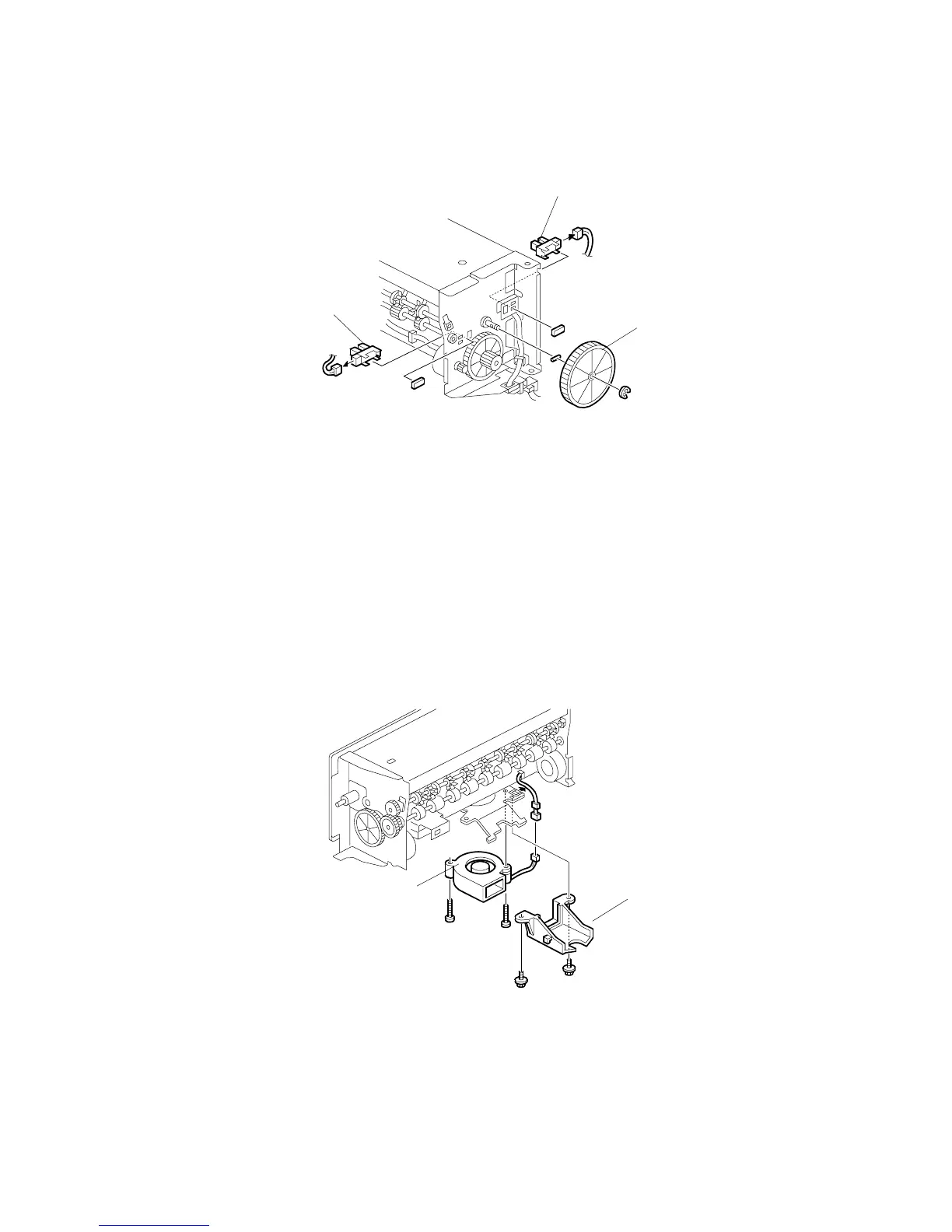

3.6.5 PRESSURE PLATE HP SENSOR / PRESSURE PLATE LIMIT
SENSOR
z Master eject unit ( 3.6.1)
z Master eject box
[A]: Pressure plate HP sensor ( x 1)
[B]: Gear ( x 1, 1 pin)
[C]: Pressure plate limit sensor ( x 1)
3.6.6 AIR KNIFE FAN MOTOR
[A]: Air knife fan duct ( x 2)
[B]: Air knife fan motor (= x 1,  x 1,  x 2)
C267R065.WMF
C267R066.WMF
[A]
[B]
[C]
[A]
[B]
