MASTER EJECT
SM 3-25 C267
C267 Service
Manual

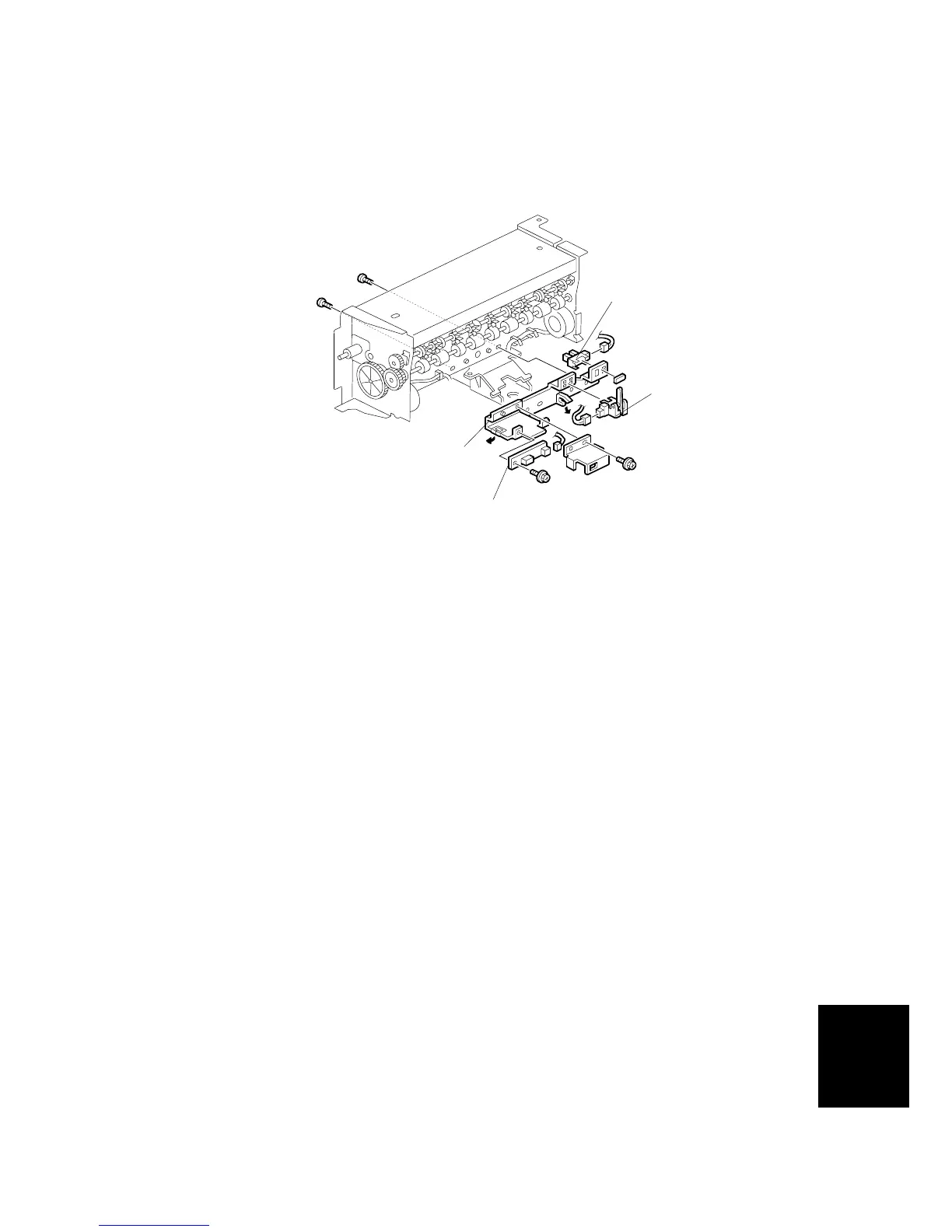

3.6.4 DRUM MASTER SENSOR / MASTER EJECT SENSOR /
EJECT BOX SET SENSOR
z Master eject unit ( 3.6.1)
z Master eject box
[A]: Drum master sensor ( x 2,  x 1)
[B]: Bracket ( x 2, = x 1)
[C]: Master eject sensor (= x 1,  x 1)
[D]: Eject box set sensor ( x 1)
C267R064.WMF
[A]
[B]
[C]
[D]
