Ricoh C231 - Lens Block

SCANNER
SM 3-7 C267
C267 Service
Manual
3.4.2 LENS BLOCK
CAUTION:
1) Do not touch the paint-locked screws on the lens block. The position
of the lens assembly (black part) is adjusted before shipment.
2) Do not grasp the PCB or the lens assembly when handling the lens
block. The lens assembly may slide out of position.
• Exposure glass ( 3.4.1)

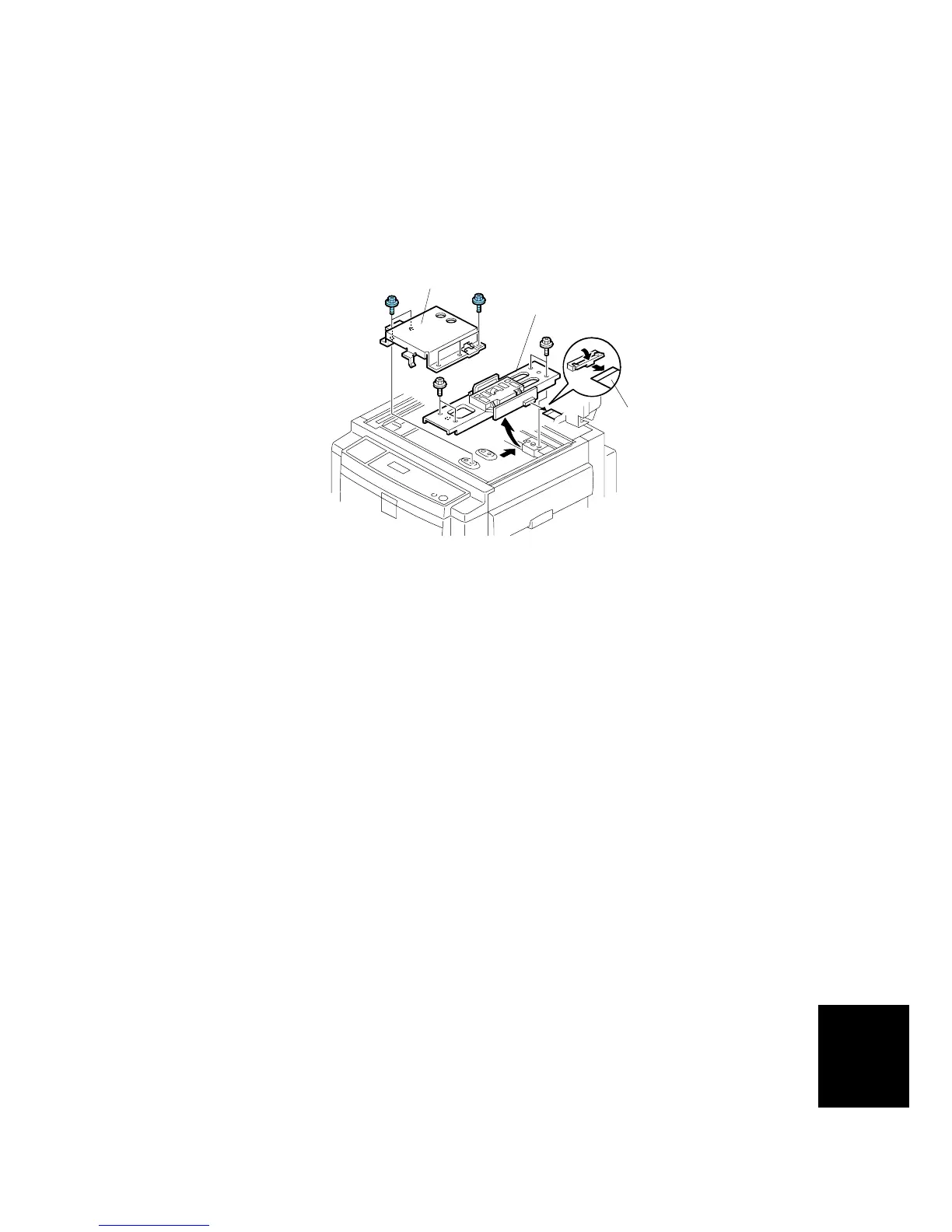

[A]: Lens cover ( x 5)
[B]: Ribbon cable
[C]: Lens block ( x 4).
C267R009.WMF
[A]
[B]
[C]
