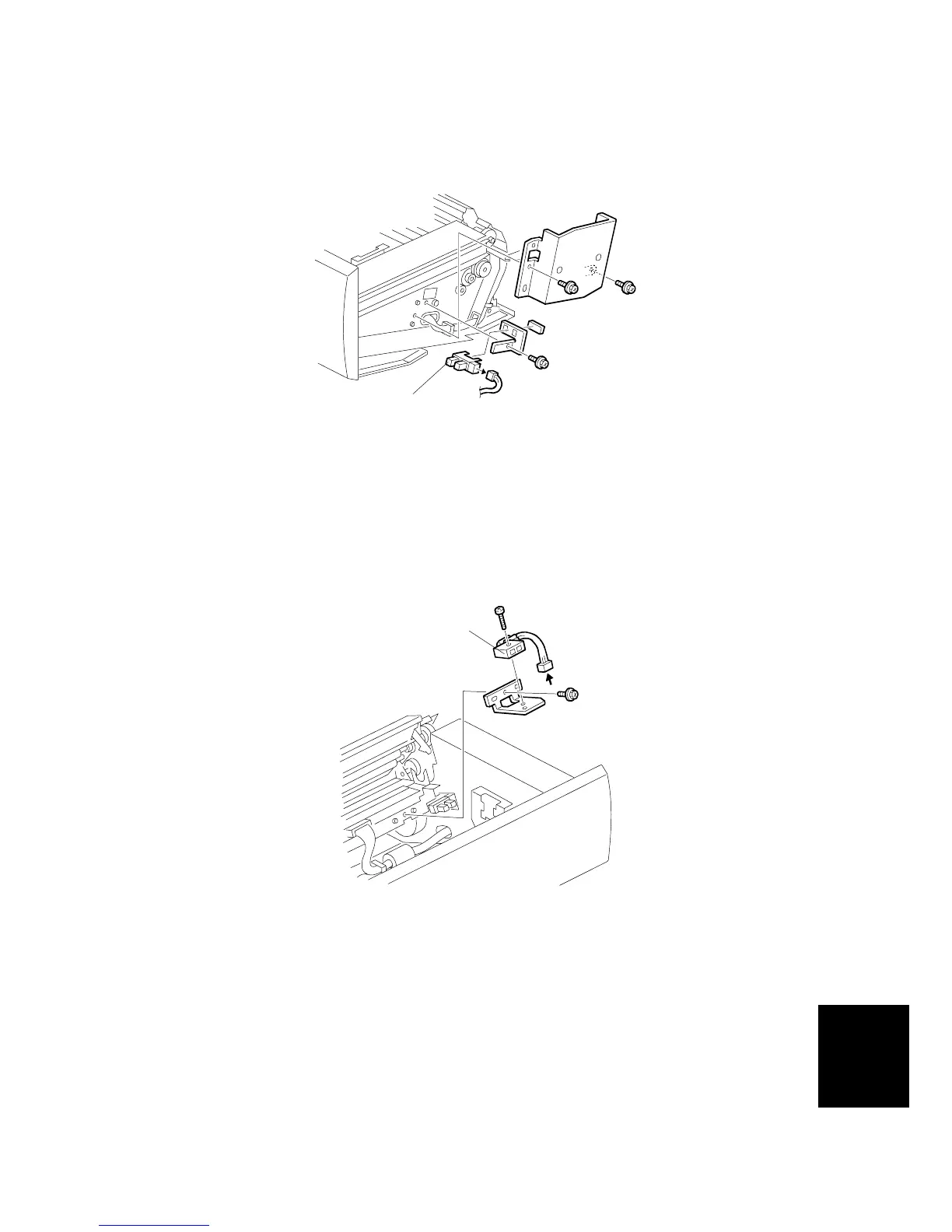

3.5.4 MASTER SET COVER SENSOR
z Master making unit ( 3.5.1)
[A]: Master set cover sensor ( x 3,  x 1)
3.5.5 MASTER END SENSOR
z Master making unit ( 3.5.1)
z Thermal head upper cover ( 3.5.3)
z Thermal head side cover ( 3.5.3)
[A]: Master end sensor ( x 2,  x 1)
NOTE: Adjust the master end sensor ( 3.5.8) after installing a new sensor.
