MECHANICAL COMPONENT LAYOUT
C600 8-2 SM

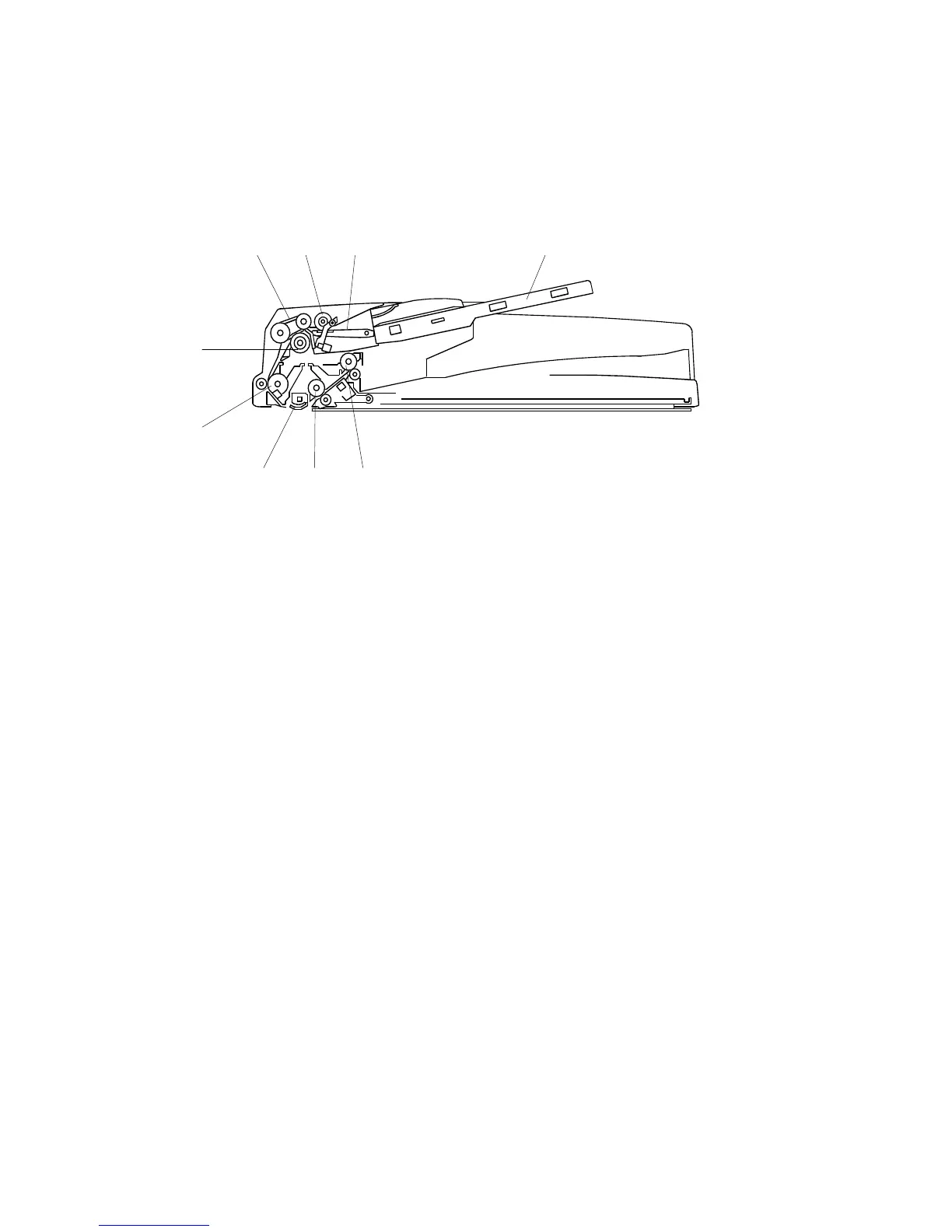

1.2 MECHANICAL COMPONENT LAYOUT
1. Separation roller
2. Original feed belt
3. Pick-up roller
4. Original entrance guide
5. Original table
6. Original exit roller
7. 2nd transport roller
8. Original exposure guide
9. 1st transport roller
C600V101.WMF
5432
1
78 6
9
