PAPER DELIVERY
SM 3-59 C267
C267 Service
Manual
NOTE: The drum turns to home position automatically immediately after the
power switch is turned on.
2. Loosen screw [A] then screw [B] in this order (do not remove them). Make sure
that the bracket [C] becomes free from engagement and the cam follower [D]
contacts the drum flange.
3. Using a gap gauge, measure the clearance [E] between the drum surface and
the exit pawls. It should be 1.15 ± 0.15 mm.
4. If the clearance is not correct, adjust the clearance by turning the bolt [F].
5. Reposition the bracket [C] and tighten the screws [A] and [B].

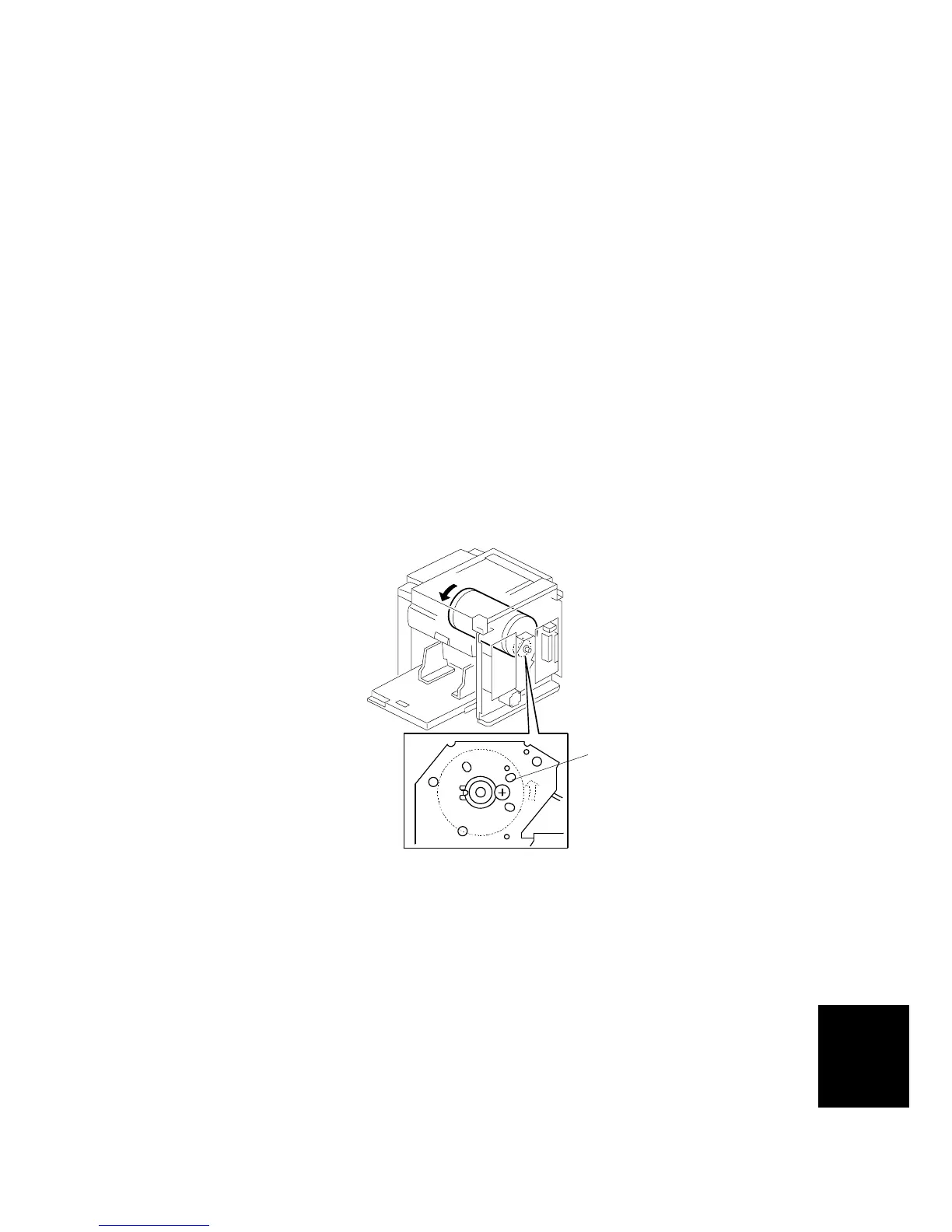

Timing adjustment
Do this after the clearance adjustment.
Standard: 0 or less than 0.5 mm
C267R044.WMF
[A]
To Next Page
