PAPER DELIVERY
C267 3-58 SM
3.10.3 EXIT PAWL ADJUSTMENT
Purpose: To ensure that the exit pawls can move out of the way of the drum
master clamper while the drum is rotating.
Clearance adjustment
Standard: Within 1.15 ± 0.15 mm
• Front cover ( 3.2.1)
• Rear cover ( 3.2.3)
1. Turn the drum to the drum home position.

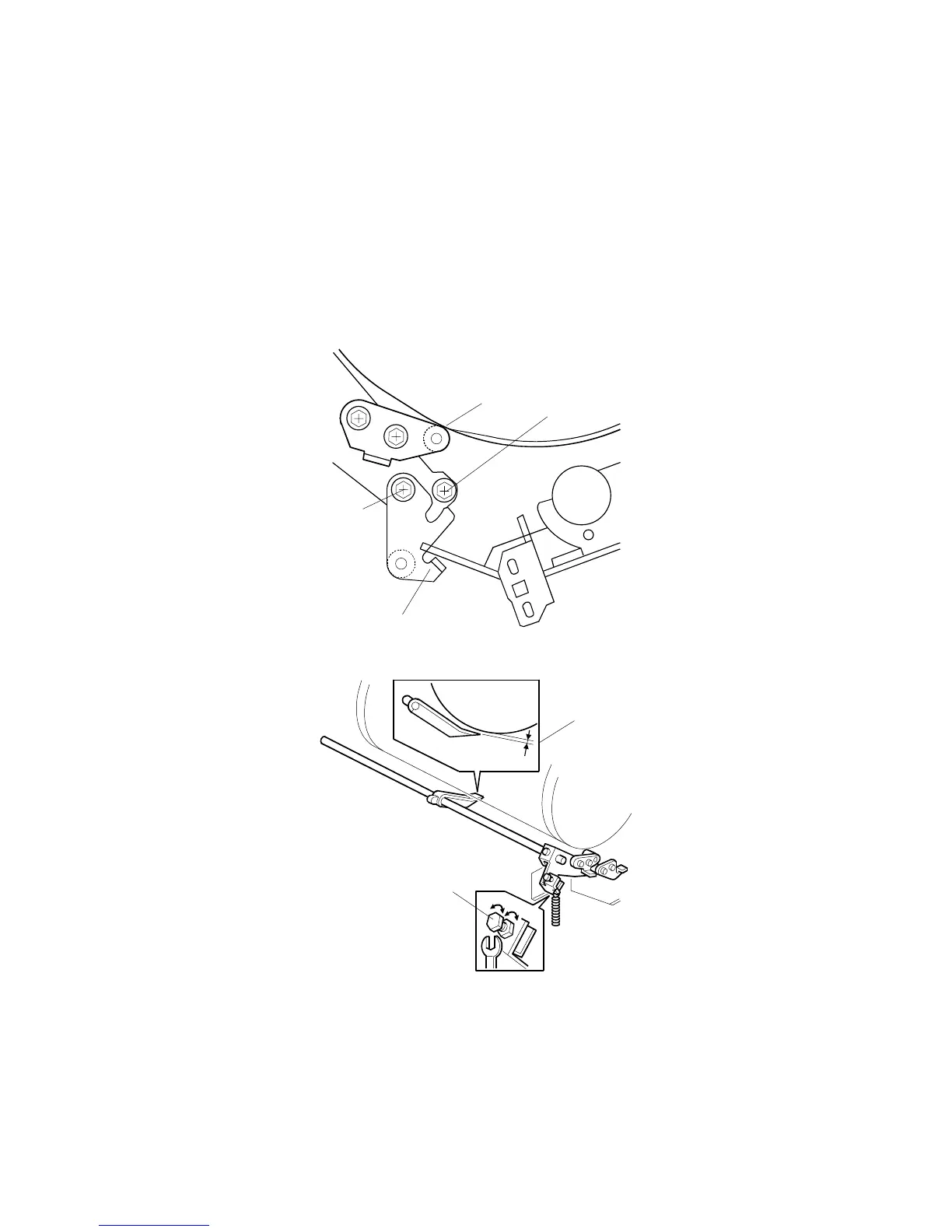

C267R913.WMF
C267R914.WMF
[A]
[B]
[C]
[D]
[E]
[F]
