GUIDE TO COMPONENTS AND THEIR FUNCTION
1-5
SM C231/C237/C238
Overall
Information
1.2 GUIDE TO COMPONENTS AND THEIR FUNCTION
1.2.1 MACHINE EXTERIOR
1. Front Door
Open for access to the inside of the machine.
2. Operation Panel
Operator controls and indicators are located here.
3. Platen Cover
Lower this cover over an original before printing.
4. Original Table Release
Lever
Use to open the original table unit when installing the
master.
5. Feed Roller Pressure
Lever
Use to adjust the contact pressure of the paper feed
roller according to paper thickness.
6. Paper Feed Side Plates
Use to prevent paper skew.
7. Paper Feed Table
Set paper on this table for printing.
8. Side Table Fine Adjusting
Dial
Use to shift the paper feed table sideways.
9. Paper Feed Table Down
key
Press to lower the paper feed table.
10. Behind Cover
Flip up when you wish to use the keys underneath.

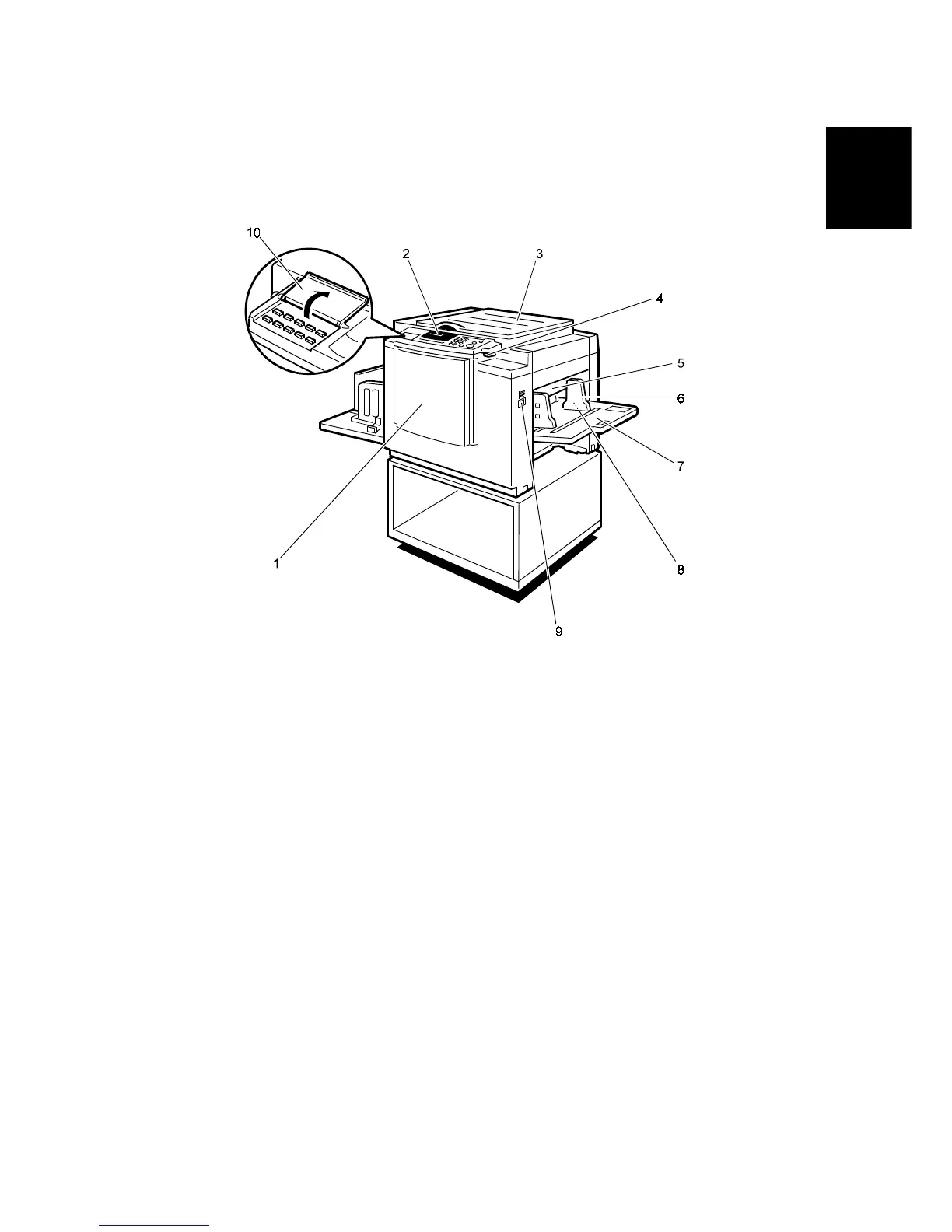

C231V504.WMF
