INSTALLATION PROCEDURE
SM 1-19 C267
C267 Service
Manual
1.2.5 TAPE DISPENSER (OPTION)
Accessory Check
Check the quantity and condition of the accessories in the box against this list:
Description Quantity
1. Knob Screw (For C210, C217, C218, C219, C222, C223,
C225, C228, C238, C237, C238, C248, C249, C264
and C267) ............................................................................2
2. Screw M4 x 25 (For C211, C212, C213, C214, C216,
C224 and C226)...................................................................2
3. Hexagon Nut M4 (For C211, C212, C213, C214, C216,
C224 and C226)...................................................................2
4. Auxiliary Bracket (For C226 and C267) ...............................1
5. Auxiliary Bracket (For C238, C247 and C249).....................1
6. Auxiliary Bracket (For C264)................................................1
7. Screw M4 x 8 (For C226, C238, C247, C249 and C267......4
8. Lock Washer (For C226 only)..............................................1
9. Lock Washer (Without C267)...............................................1
10. Tape ..................................................................................1
Installation Procedure
1. Turn off the main switch and unplug the power cord.
2. Remove the paper delivery cover ( x 5).

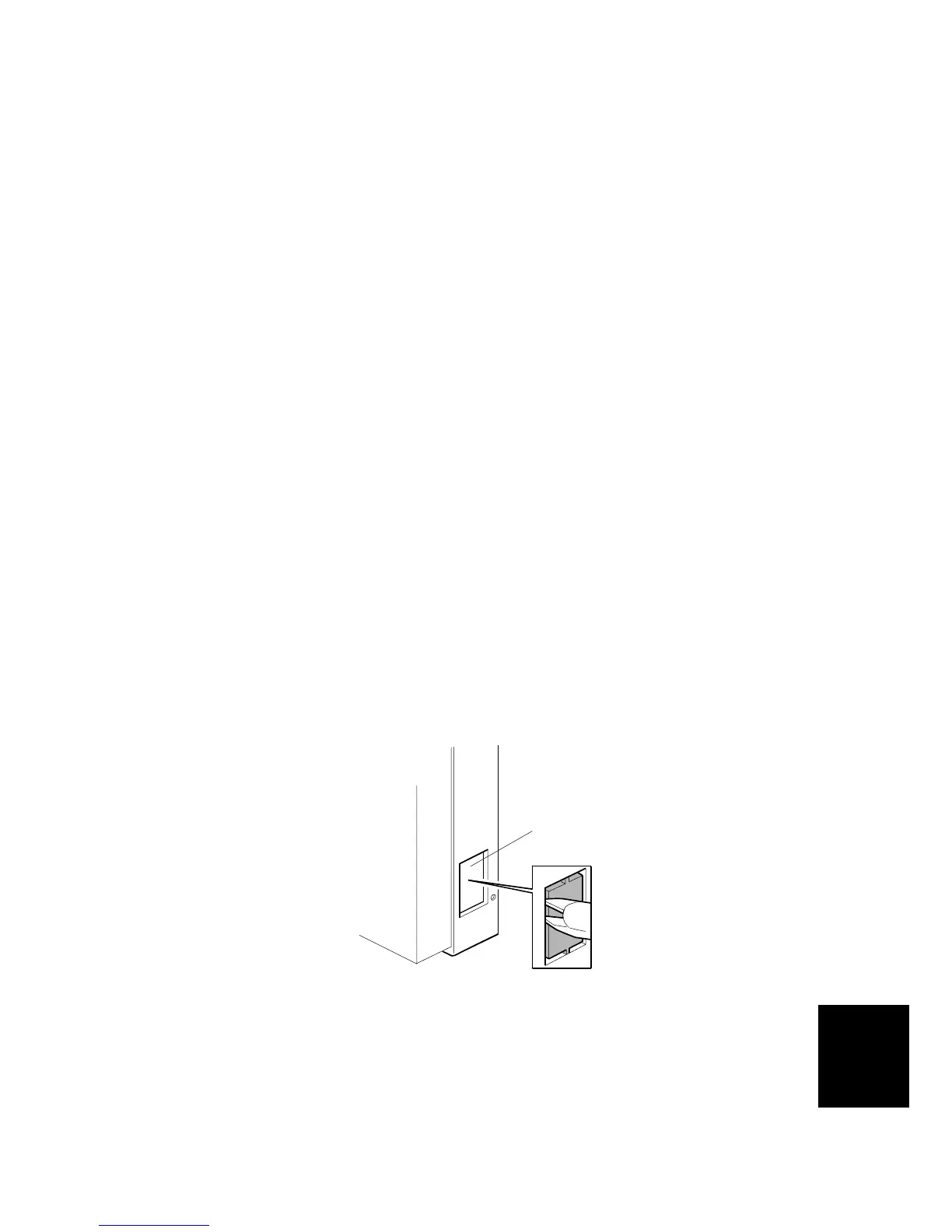

3. Remove the cutout [A] from the rear cover, as shown.
C267I903.WMF
[A]
