PAPER DELIVERY
C231/C237/C238 2-2 SM
2.2 PAPER DELIVERY
2.2.1 EXIT PAWL AIR PUMP MECHANISM (CHINESE MODEL
ONLY)

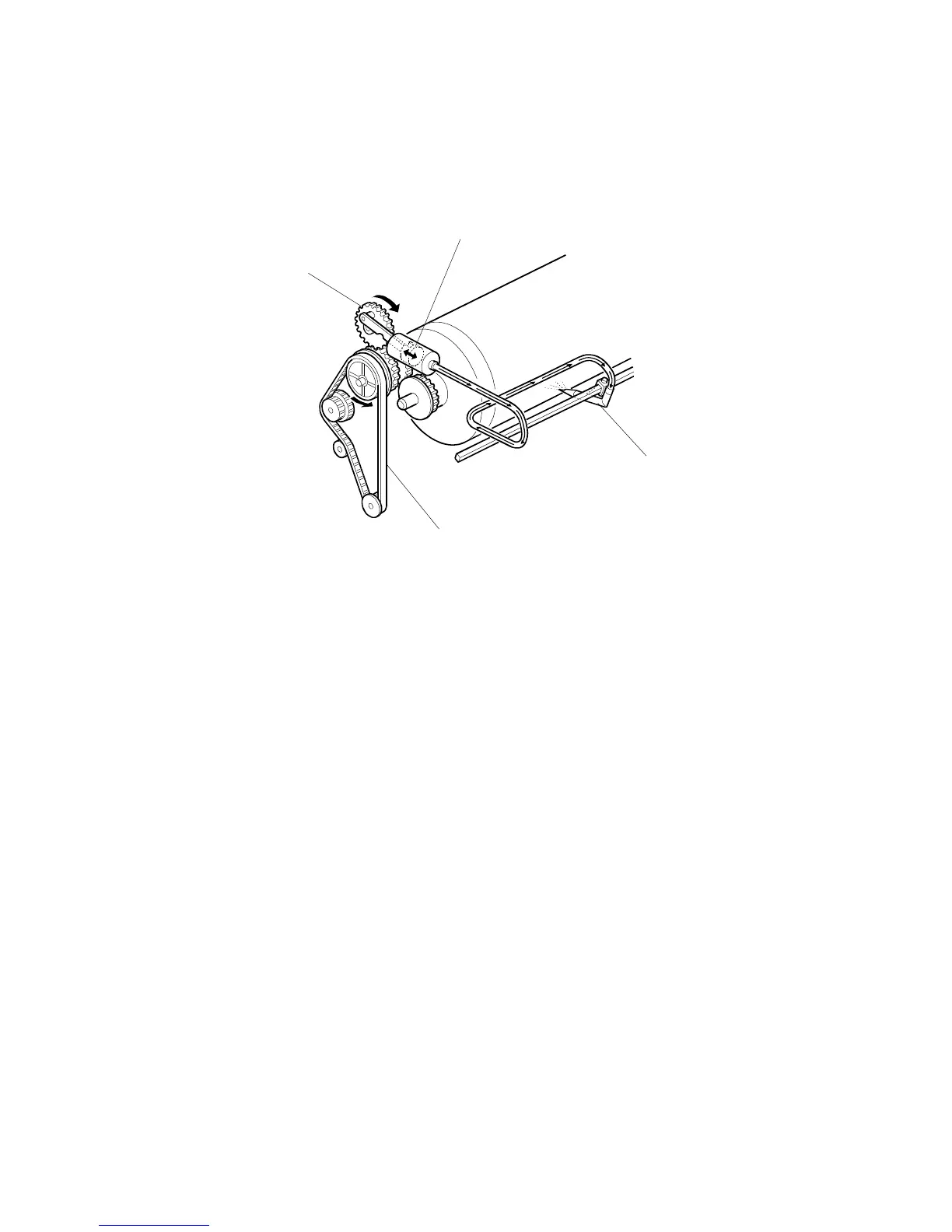

Drive from the main motor is transmitted to the pump gear [A] through gears and a
timing belt [B]. When the gear [A] rotates, it drives the piston [C] back and forth.
The piston moves forward and pushes a jet of air out through the nozzle [D]. This
jet of air helps to separate the paper from the drum.
C237D500.WMF
[A]
[B]
[C]
[D]
