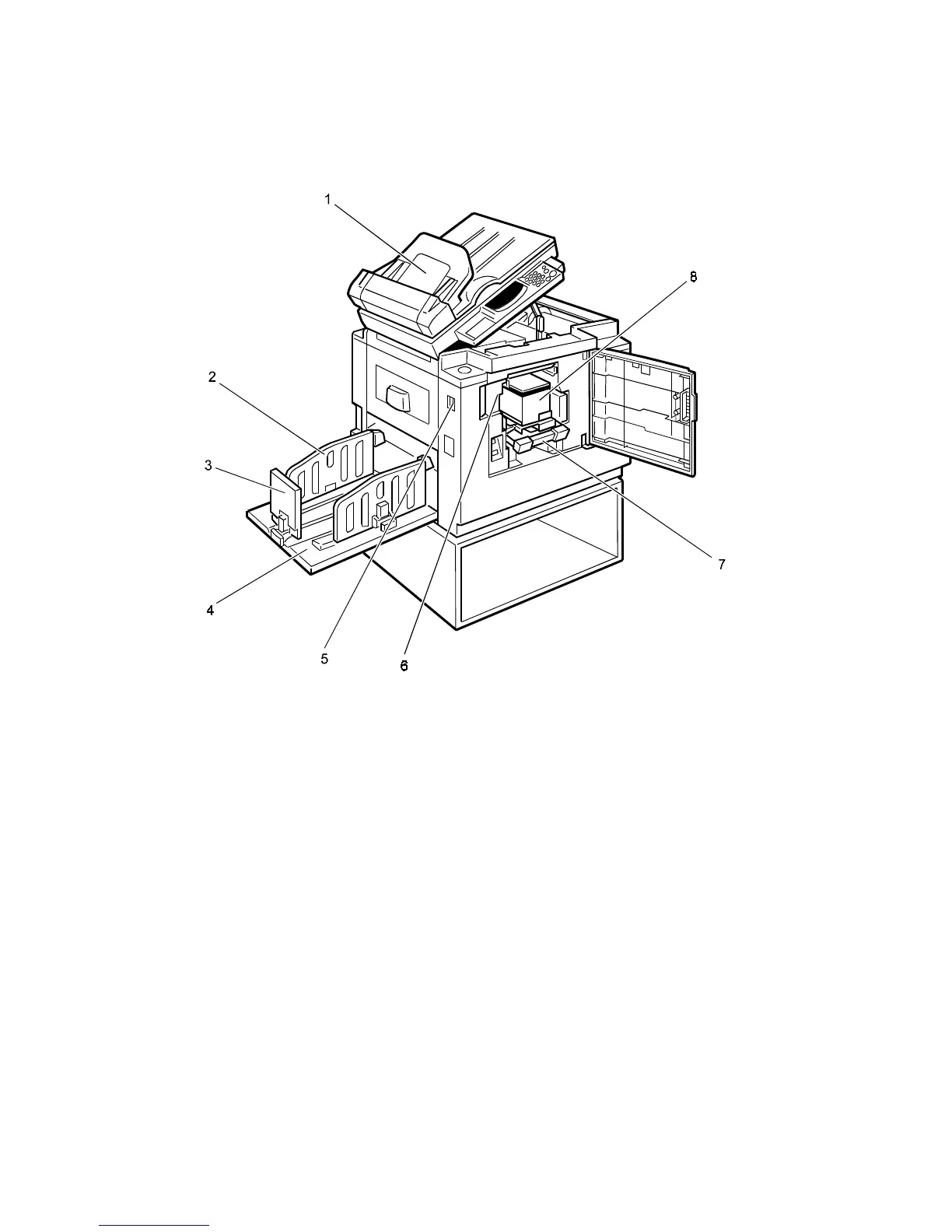

1.2.2 MACHINE INTERIOR
1. Document Feeder (Option)
Originals inserted into the document feeder are
individually and automatically fed onto and
removed from the exposure glass.
2. Paper Delivery Side Plates
Use to align the prints on the paper delivery table.
3. Paper Delivery End Plate
Use to align the leading edge of prints.
4. Paper Delivery Table
Completed prints are delivered here.
5. Main Switch
Use to turn the power on or off.
6. Drum Unit
The master is wrapped around this unit.
7. Drum Unit Lock Lever
Lift to unlock and pull out the drum unit.
8. Ink Holder
Set the ink cartridge in this holder.
C231V505.WMF
