PAPER DELIVERY
SM 6-45 C267
C267 Service
Manual

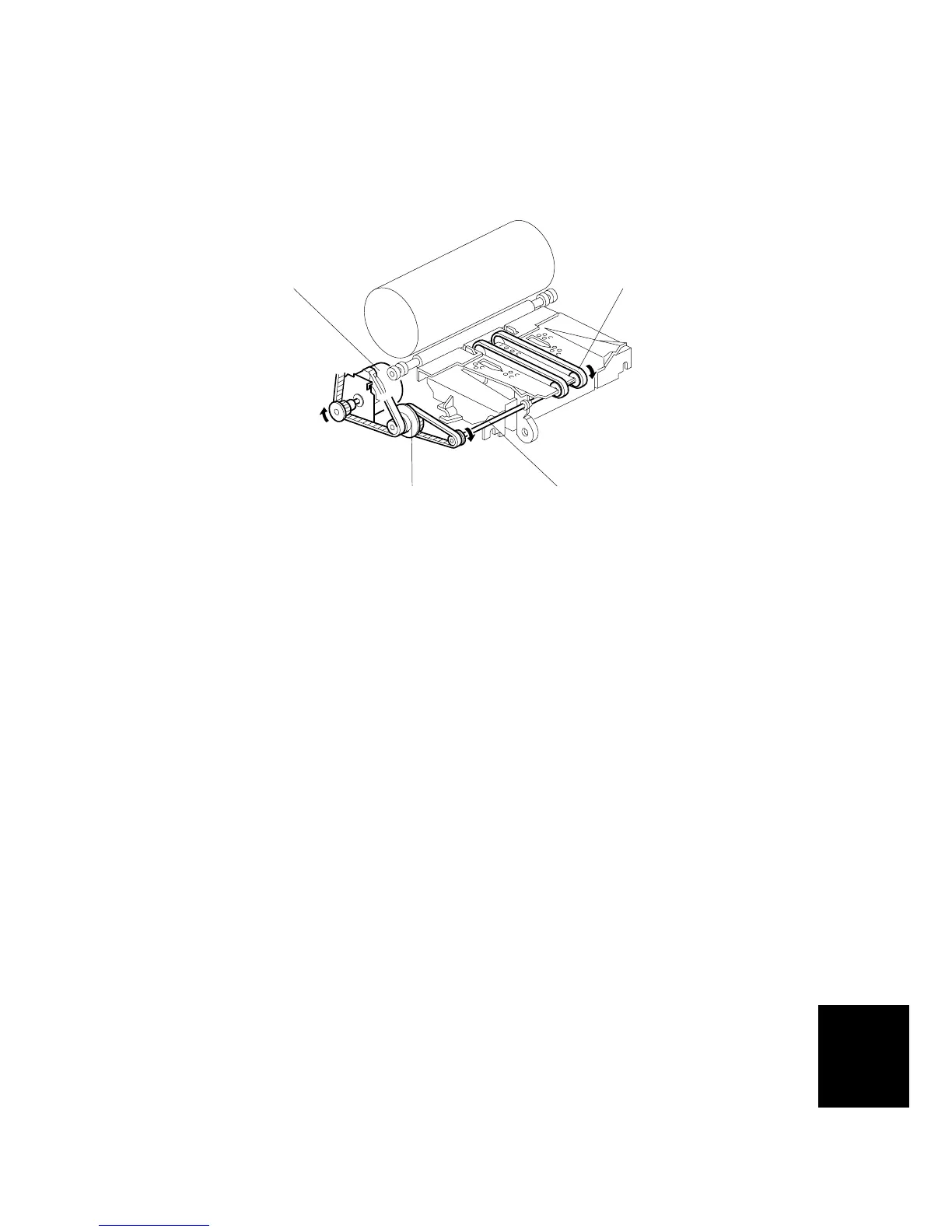

6.10.2 PAPER DELIVERY UNIT DRIVE MECHANISM
Mechanism
Main motor [A]
↓
Belt and gear [B]
↓
Shaft [C]
↓
Rotates the transport belts [D].
NOTE:
1) The vacuum fan motor inside the unit holds the paper against the belts
[D] to deliver the paper to the delivery table.
2) Transport belt [D] become wider compare to the previous series
machine.
3) The transport belt rotation speed depends on the selected print speed.
C267D021.WMF
[A]
[B] [C]
[D]
